With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

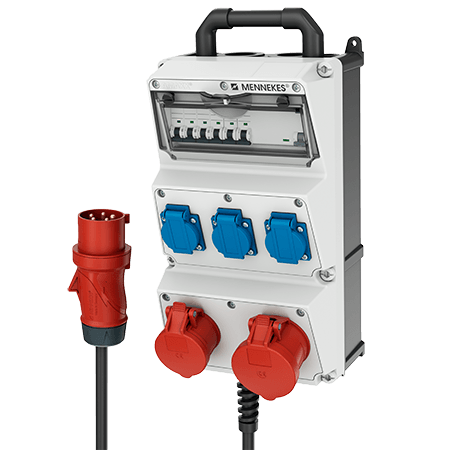

AMAXX receptacle combination 931237
CEE 32 A, 5 p, 400 V | 1 |
---|---|
CEE 16 A, 5 p, 400 V | 1 |
British standard | 3 |
Fusing |
|
Pre-fuse max. | 32 A |
InA | 32 A |
RDF | 1 |
Connection/feeder cable |
|
Protection type | IP44 |
Enclosure material | Plastic |
Weight | 6362 g |
Height | 390 mm |
Width | 225 mm |
Storage receptacle combination | D |

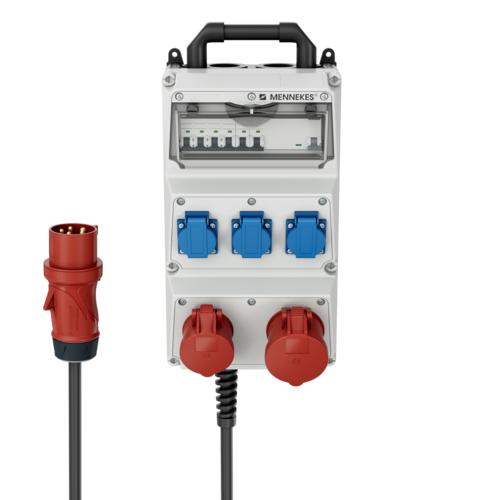

AMAXX receptacle combination 931237
AMAXX receptacle combination 931237
We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.
Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.
Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
