MENNEKES Angled plug VarioTOP 3980
MENNEKES Angled plug VarioTOP 3980 images3d

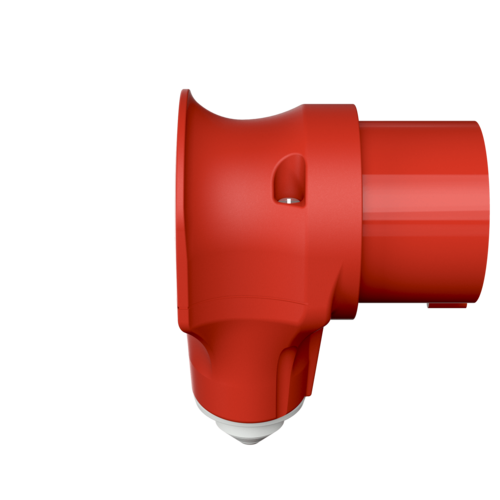

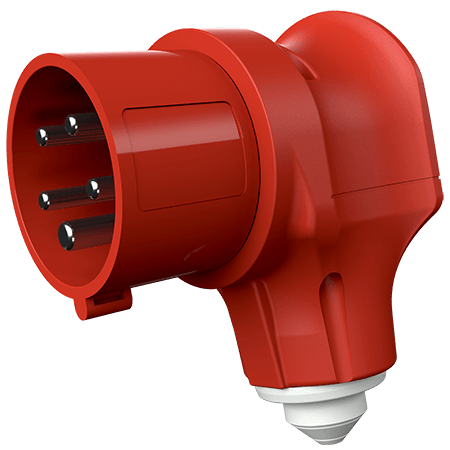

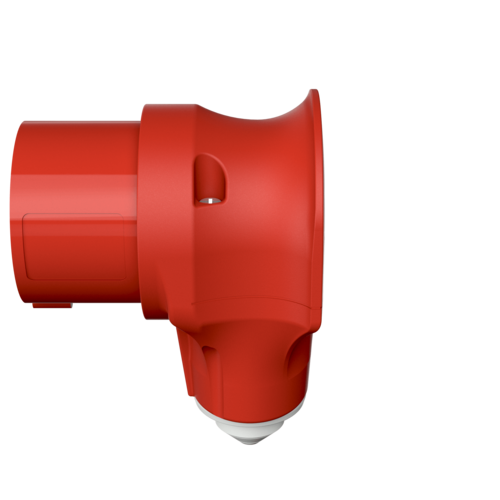

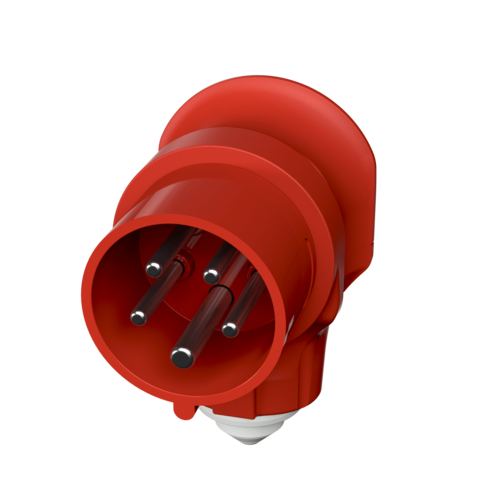

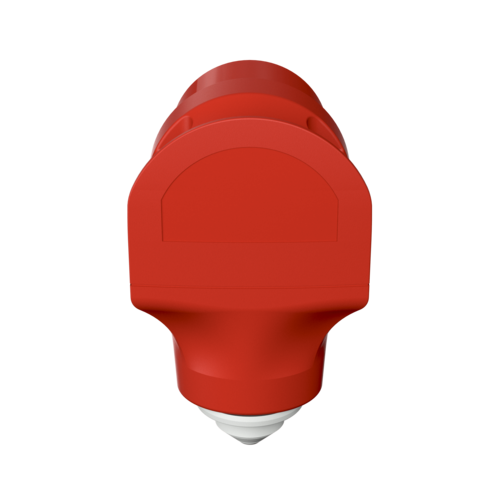

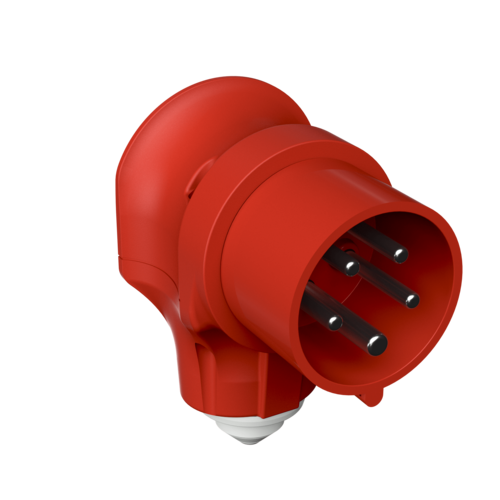

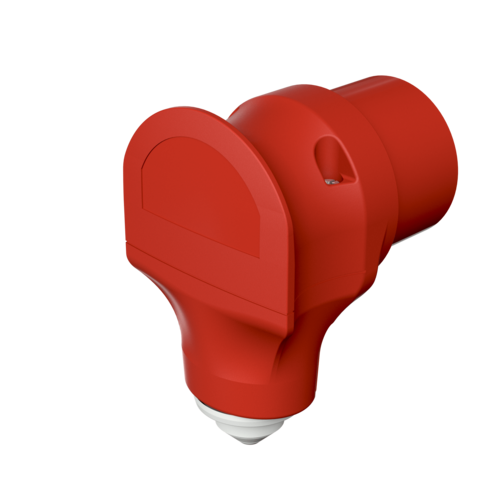

Angled plug VarioTOP 3980

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • cable entry hood rotating up to 60° to the left or right
  • with grommet
  • cable entry hood in colour code
  • especially suited for use with receptacles of the Cepex range
  • Part no.3980
  • EAN4015394100164
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Angled plug VarioTOP 3980

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP44
Weight 182 g
Certifications VDE
EAC
CQC

Directives

Angled plug VarioTOP 3980

Appropriate accessories

Angled plug VarioTOP 3980

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
