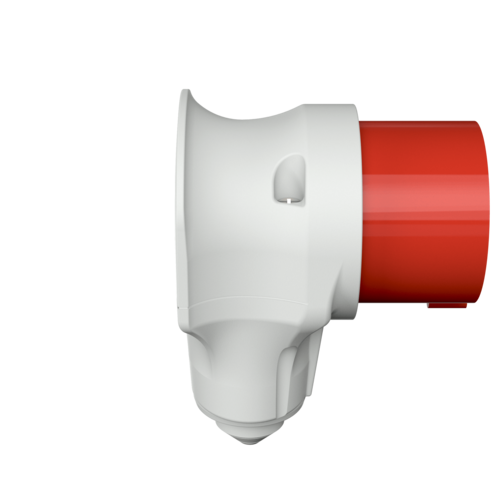

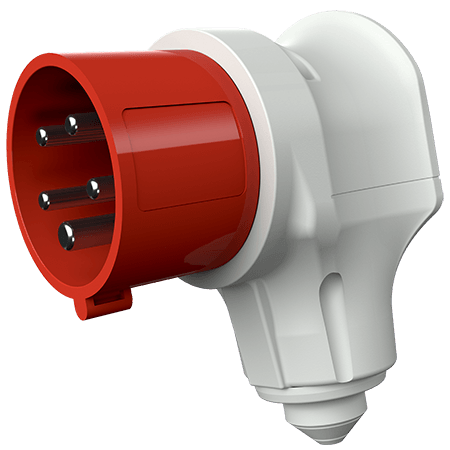

Angled plug VarioTOP 3982

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • cable entry hood rotating up to 60° to the left or the right
  • with grommet
  • cable entry hood in electric grey
  • especially suited for use with receptacles of the Cepex range
  • Part no.3982
  • EAN4015394119579
  • Std. Pack. 10 Qty.

Technical specifications

Angled plug VarioTOP 3982

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP 44
Weight 185 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Angled plug VarioTOP 3982

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
