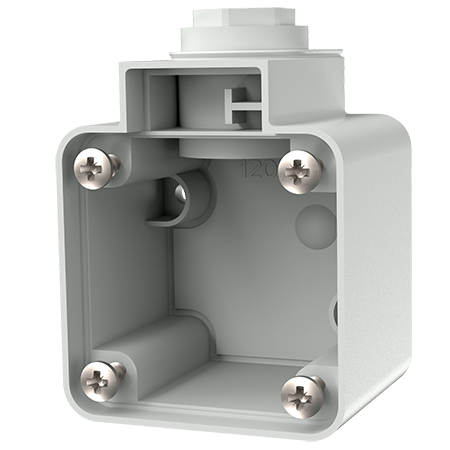

Base for wall mounted receptacle 10714

with cable entry and screws

suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

Part no.10714
EAN4015394200826
Std. Pack. 10 Qty.

Technical specifications

Base for wall mounted receptacle 10714

Dimensional drawing landscape format

Datasheets & Downloads

Base for wall mounted receptacle 10714

Product info Base for wall mounted receptacle 10714 PDF, 114 KB

CAD data STP Base for wall mounted receptacle 10714 ZIP, 274 KB

CAD data 3D DWG Base for wall mounted receptacle 10714 ZIP, 862 KB

Dimensional drawing portrait Base for wall mounted receptacle 10714 PNG, 55 KB

Dimensional drawing landscape format Base for wall mounted receptacle 10714 PNG, 54 KB

Appropriate products

Base for wall mounted receptacle 10714

Panel mounted receptacle SCHUKO®

Part no. 11010

Protection type: IP 54
Ampere: 16 A
Poles: 2 p+E
Voltage: 230 V
Connection technology: Plug-in terminals

Panel mounted receptacle SCHUKO®

Part no. 11030

Protection type: IP 54
Ampere: 16 A
Poles: 2 p+E
Voltage: 230 V
Connection technology: Screw terminals

Panel mounted receptacle SCHUKO®

Part no. 11060

Protection type: IP 54
Ampere: 16 A
Poles: 2 p+E
Voltage: 230 V
Connection technology: Plug-in terminals

Grounding-type panel mounted receptacle

Part no. 11110

Protection type: IP 44
Ampere: 16 A
Poles: 2 p+E
Voltage: 230 V
Connection technology: Plug-in terminals

Grounding-type panel mounted receptacle

Part no. 11160

Protection type: IP 44
Ampere: 16 A
Poles: 2 p+E
Voltage: 230 V
Connection technology: Plug-in terminals

Grounding-type panel mounted receptacle

Part no. 11180

Protection type: IP 44
Ampere: 16 A
Poles: 2 p+E
Voltage: 230 V
Connection technology: Screw terminals
