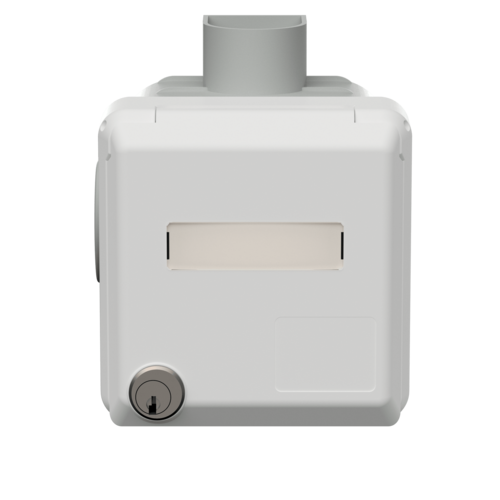

Cepex flush mounted receptacle 4246

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with labelling field
  • with safety lock
  • two keys
  • cannot be dismantled when locked
  • on request with identical locks
  • with flush mounted installation box
  • with identical locks: part no + index G
  • Part no.4246
  • EAN4015394022947
  • Std. Pack. 5 Qty.

Technical specifications

Cepex flush mounted receptacle 4246

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 307 g
Declaration of Conformity VDE
EAC
