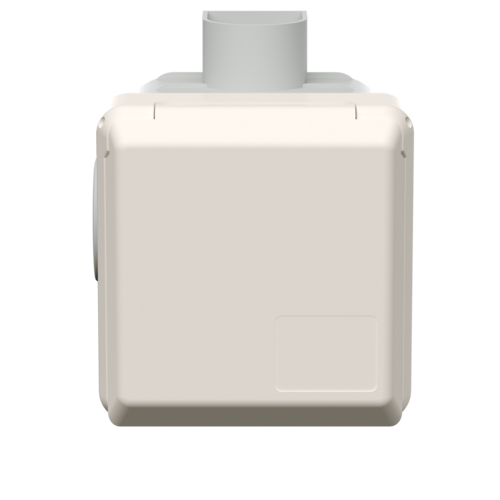

MENNEKES Cepex grounding-type flush mounted receptacle 4902
MENNEKES Cepex grounding-type flush mounted receptacle 4902 images3d

Cepex grounding-type flush mounted receptacle 4902

Ampere 16 A
Poles
Voltage
  • french-belgian standard
  • screw terminals
  • with flush mounted installation box
  • meeting DIN 18032 standards for ball rebound
  • Part no.4902
  • EAN4015394231172
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding-type flush mounted receptacle 4902

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter Yes
Weight 230 g
Certifications EAC

Directives

Cepex grounding-type flush mounted receptacle 4902

Appropriate accessories

Cepex grounding-type flush mounted receptacle 4902

MENNEKES Protection plate 41414

Protection plate

Part no. 41414

for flush mounted installation box to protect fixing holes and the box from plaster and dirt until the receptacle is installed
