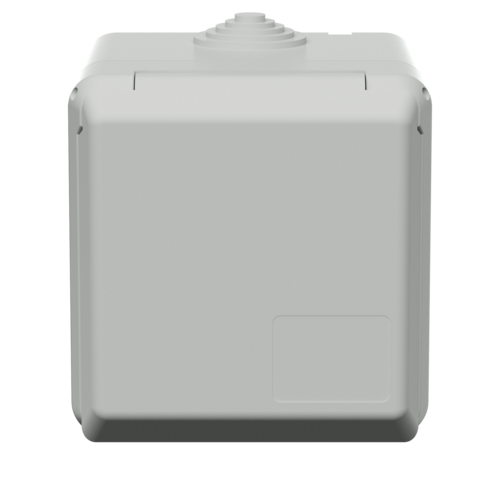

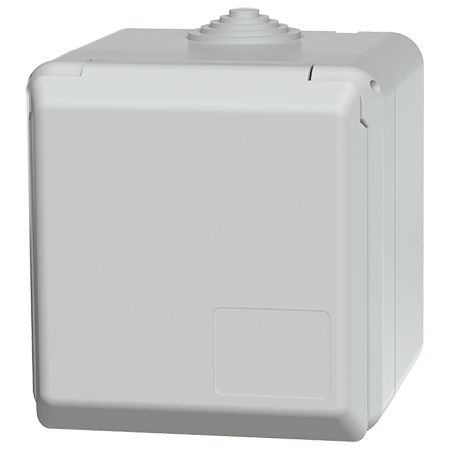

MENNEKES Cepex grounding-type panel wall receptacle 4900
MENNEKES Cepex grounding-type panel wall receptacle 4900 images3d

Cepex grounding-type panel wall receptacle 4900

Ampere 16 A
Poles
Voltage
  • french-belgian standard
  • screw terminals
  • one cable entry at top with M 25 stub, one M 25 blind entry (can be cut out) at bottom, one M 20 entry (can be cut out) at the back side, for cables from 7 bis 13 mm Ø
  • meeting DIN 18032 standards for ball rebound
  • Part no.4900
  • EAN4015394231165
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding-type panel wall receptacle 4900

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter Yes
Weight 260 g

Directives

Cepex grounding-type panel wall receptacle 4900

Appropriate accessories

Cepex grounding-type panel wall receptacle 4900

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)
