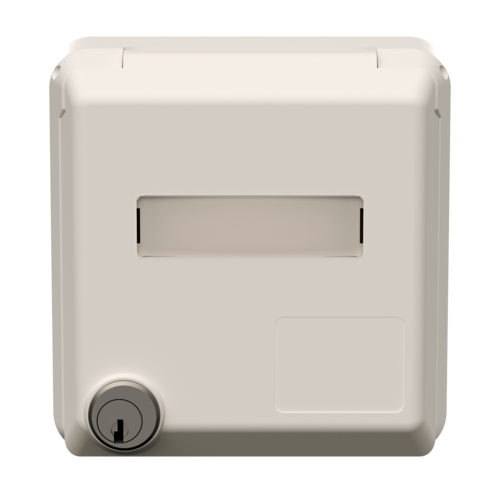

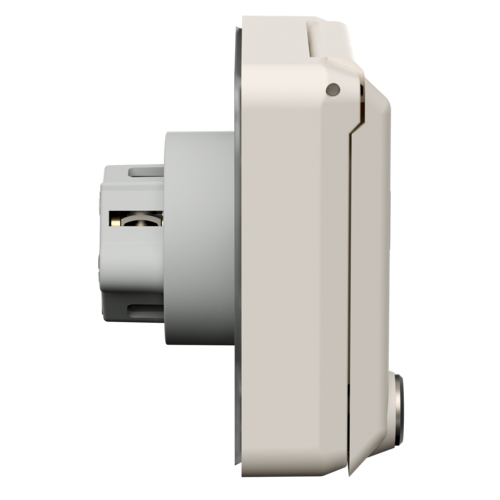

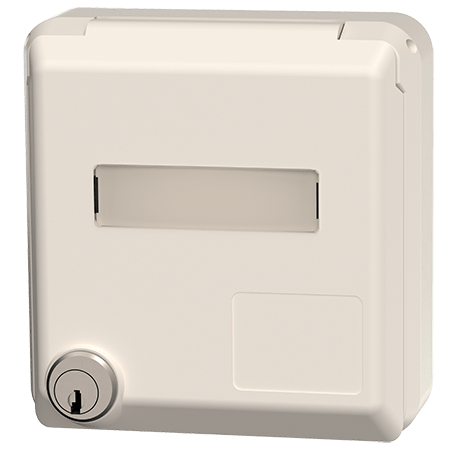

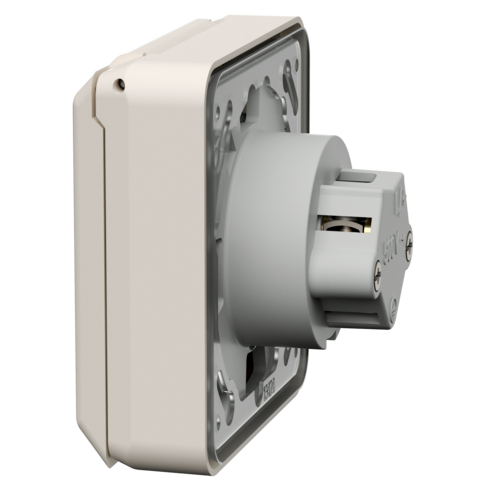

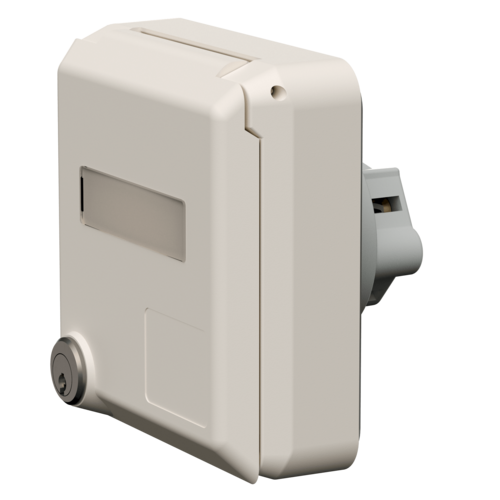

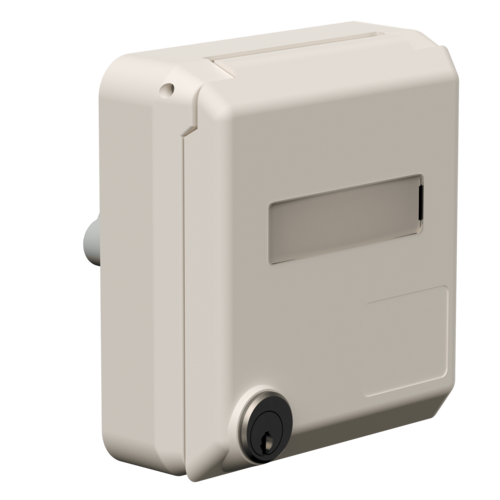

Cepex panel mounted receptacle 4172

Poles
Voltage
Clock position

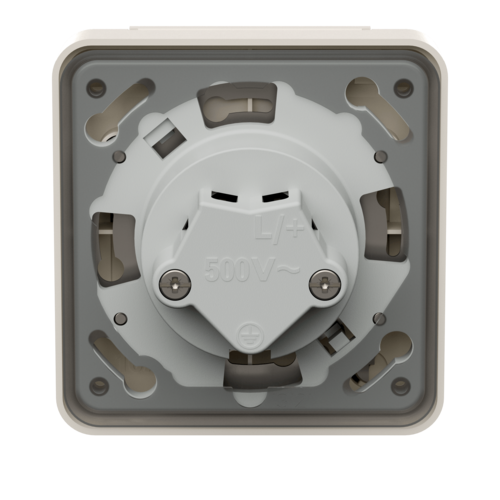

  • screw terminals
  • with labelling field
  • with safety lock
  • two keys
  • cannot be dismantled when locked
  • on request with identical locks
  • suitable for installation in cable ducts and columns
  • with identical lock: part no. + index G
  • Part no.4172
  • EAN4015394022275
  • Std. Pack. 5 Qty.

Technical specifications

Cepex panel mounted receptacle 4172

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 210 g
Declaration of Conformity VDE
EAC

Appropriate accessories

Cepex panel mounted receptacle 4172

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

more

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

more

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

more

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

more
