MENNEKES

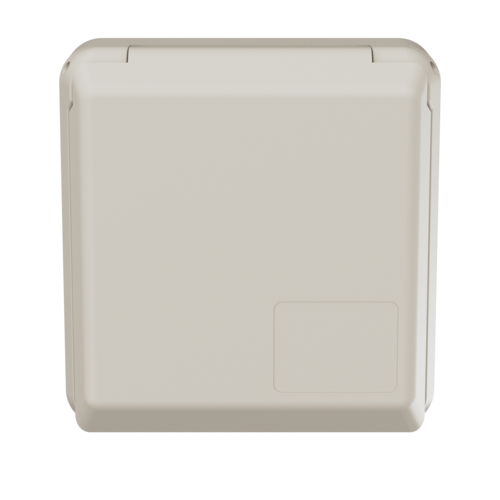

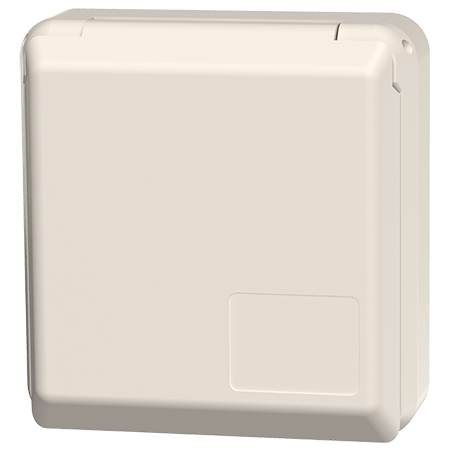

Cepex panel mounted receptacle SCHUKO® 4971

Ampere 16 A
Poles
Voltage
  • alpine white or pearl white
  • screw terminals
  • suitable for installation in cable ducts and columns
  • meeting DIN 18032 standards for ball rebound
  • Part no.4971
  • EAN4015394023036
  • Std. Pack. 5 Qty.

Technical specifications

Cepex panel mounted receptacle SCHUKO® 4971

Ampere 16 A
Poles 3 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 138 g
Declaration of Conformity EAC

Appropriate accessories

Cepex panel mounted receptacle SCHUKO® 4971

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

more

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

more

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

more

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

more
