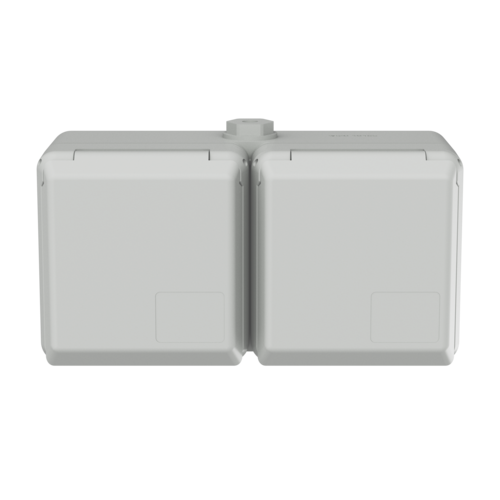

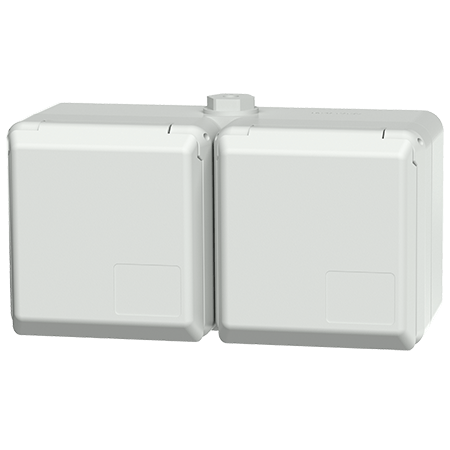

Cepex surface mounted duplex socket 4281

Ampere 16 A
Poles
Voltage
  • French/Belgian standard
  • screw terminals
  • 1 x M 20 plugged at top, 2 x M 25 to be cut out at the bottom, 2 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø
  • Part no.4281
  • EAN4015394231448
  • Std. Pack. 5 Qty.

Technical specifications

Cepex surface mounted duplex socket 4281

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP 44
Shutter Yes
Weight 262 g
Declaration of Conformity EAC

Appropriate accessories

Cepex surface mounted duplex socket 4281

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

more
