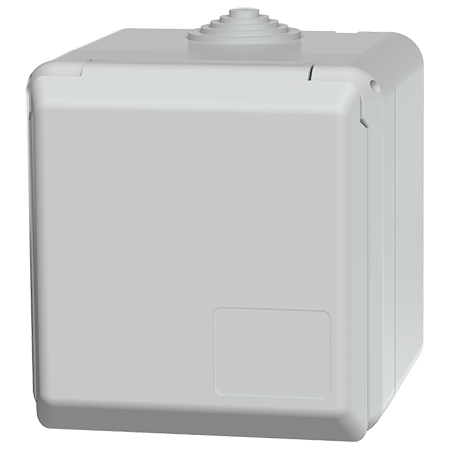

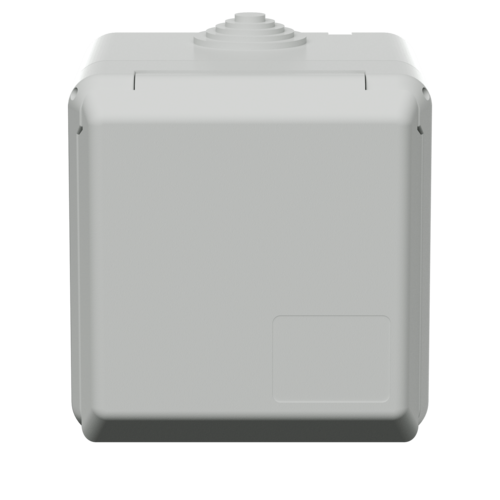

Cepex wall mounted receptacle 4101

Poles
Voltage
Clock position
  • screw terminals
  • meeting DIN 18032 standards for ball rebound
  • Part no.4101
  • EAN4015394021384
  • Std. Pack. 5 Qty.

Technical specifications

Cepex wall mounted receptacle 4101

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 284 g

Appropriate accessories

Cepex wall mounted receptacle 4101

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

more
