MENNEKES

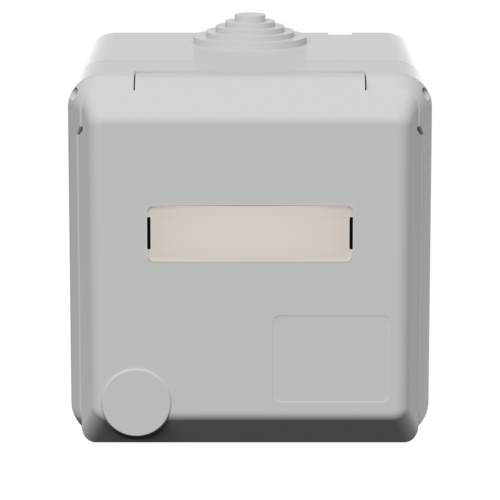

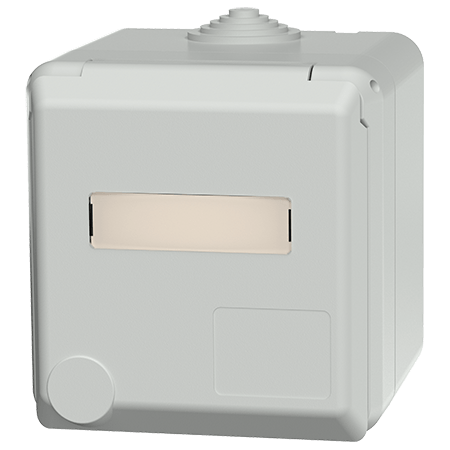

Cepex wall mounted receptacle 4132

Poles
Voltage
Clock position
  • screw terminals
  • with labelling field
  • Part no.4132
  • EAN4015394021780
  • Std. Pack. 5 Qty.

Technical specifications

Cepex wall mounted receptacle 4132

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 286 g
Declaration of Conformity VDE
EAC
CQC

Appropriate accessories

Cepex wall mounted receptacle 4132

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

more
