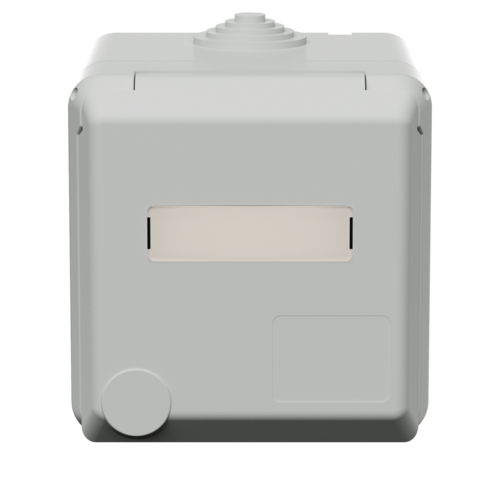

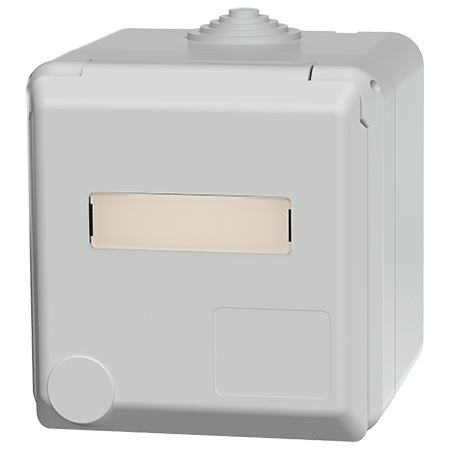

Cepex wall mounted receptacle 4133

Poles
Voltage
Clock position
  • screw terminals
  • with labelling field
  • Part no.4133
  • EAN4015394021797
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted receptacle 4133

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP 44
Shutter No
Weight 300 g
Declaration of Conformity EAC
CQC

Appropriate accessories

Cepex wall mounted receptacle 4133

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles
