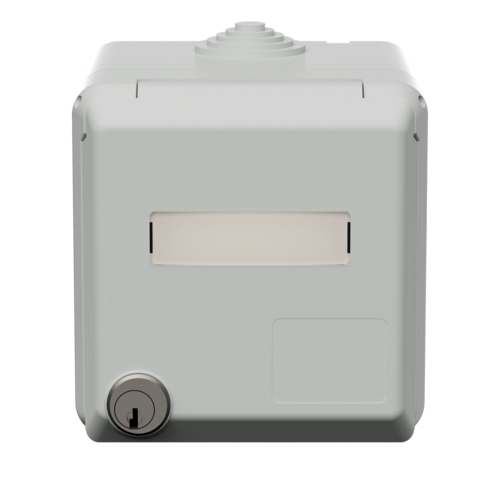

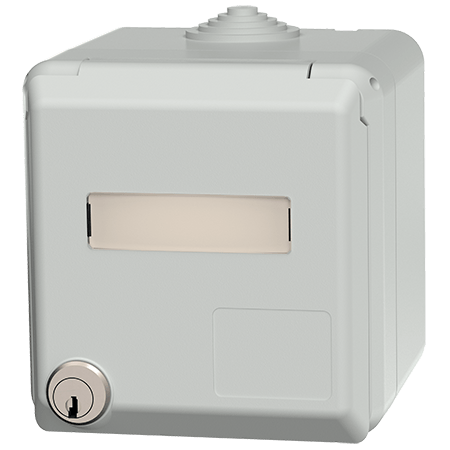

Cepex wall mounted receptacle 4163

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
with labelling field
with safety lock, two keys

cannot be dismantled when locked
on request with identical locks
with identical lock: part no. + index G

Part no.4163
EAN4015394022152
Std. Pack. 5 Qty.

Technical specifications

Cepex wall mounted receptacle 4163

Ampere	16 A
Poles	4 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP 44
Shutter	No
Weight	335 g

Datasheets & Downloads

Cepex wall mounted receptacle 4163

Product info Cepex wall mounted receptacle 4163 PDF, 206 KB

Dimensional drawing portrait Cepex wall mounted receptacle 4163 PNG, 100 KB

Dimensional drawing landscape format Cepex wall mounted receptacle 4163 PNG, 101 KB

Appropriate accessories

Cepex wall mounted receptacle 4163

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles
