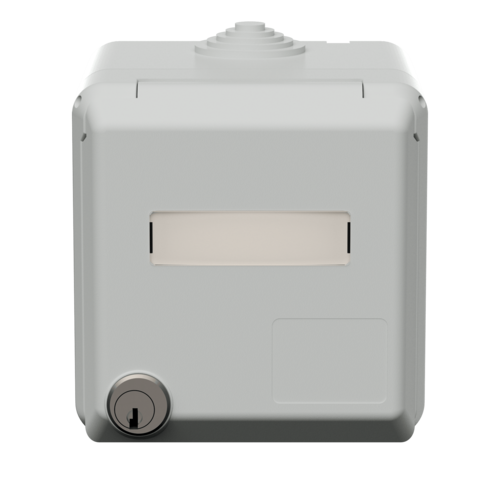

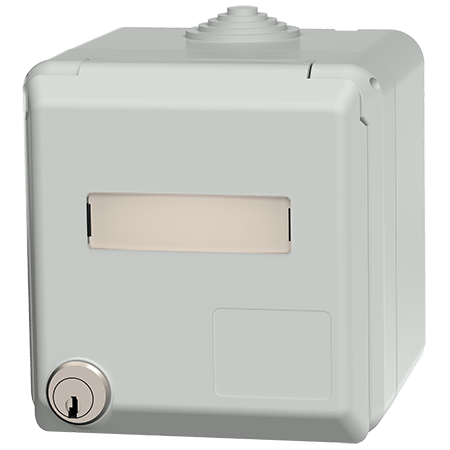

MENNEKES Cepex wall mounted receptacle 4167
MENNEKES Cepex wall mounted receptacle 4167 images3d

Cepex wall mounted receptacle 4167

Poles
Voltage
Clock position
  • screw terminals
  • with labelling field
  • with safety lock, two keys
  • cannot be dismantled when locked
  • on request with identical locks
  • with identical lock: part no. + index G
  • Part no.4167
  • EAN4015394022220
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted receptacle 4167

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 402 g
Certifications EAC

Directives

Cepex wall mounted receptacle 4167

Appropriate accessories

Cepex wall mounted receptacle 4167

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles SCHUKO® as well as all Cepex CEE surface mounted 16 A and 32 A receptacles

Frequently asked questions about the product

Are there spare keys for lockable Cepex receptacles?

We are offering a spare lock and a key for our Cepex receptacles. It is not possible to provide a single key.
