MENNEKES

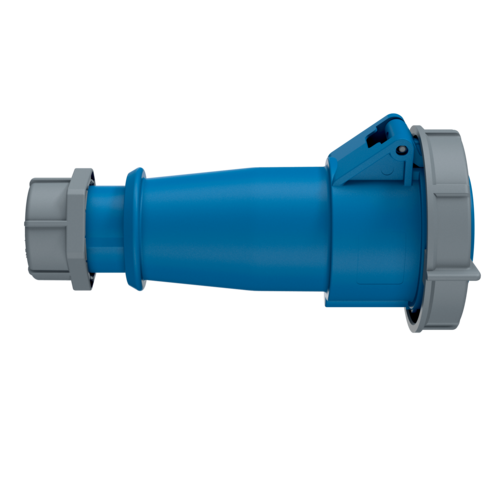

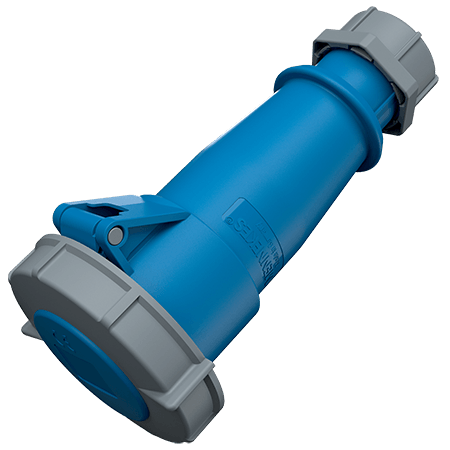

Connector AM-TOP® 561

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.561
  • EAN4015394004165
  • Std. Pack. 10 Qty.

Technical specifications

Connector AM-TOP® 561

Ampere 32 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 434 g
Declaration of Conformity DE,VDE
CN,CQC
