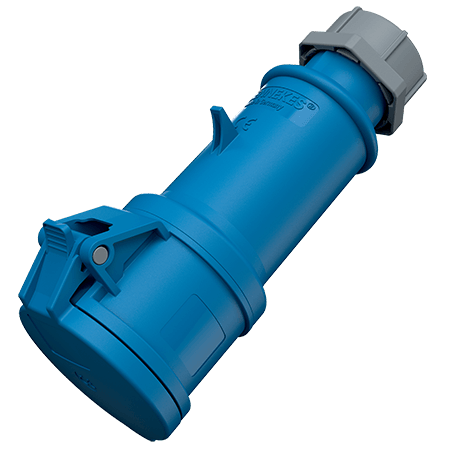

Connector CEEplus 982

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with 4 additional contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.982
  • EAN4015394212294
  • Std. Pack. 10 Qty.

Technical specifications

Connector CEEplus 982

Ampere 16 A
Poles 5 p+a
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 240 g
