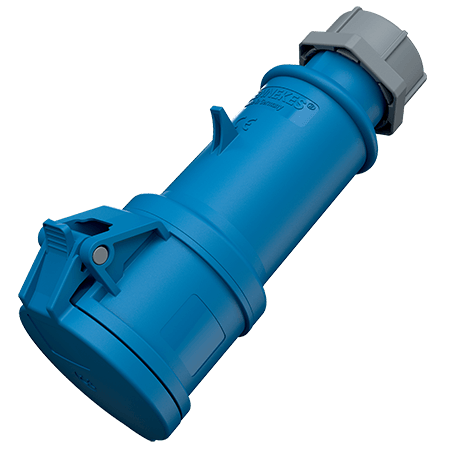

Connector ProTOP 122

MENNEKES CEE connectors ProTOP® for 16 and 32 A with proven screw contacts.

Poles
Voltage
Clock position
  • screw terminals
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.122
  • EAN4015394190318
  • Std. Pack. 10 Qty.

Technical specifications

Connector ProTOP 122

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 317 g
Declaration of Conformity DE,VDE
RU,EAC (Zwangszulassung)
CN,CQC
