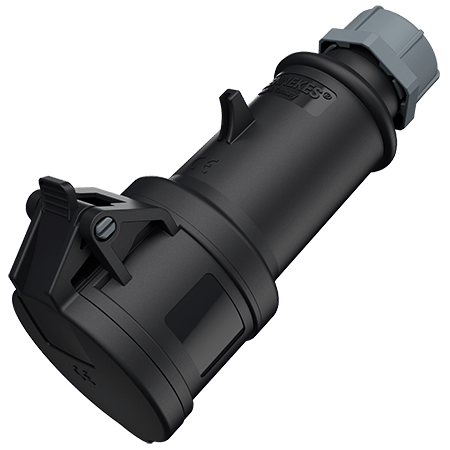

Connector ProTOP 195A

MENNEKES CEE connectors ProTOP® for 16 and 32 A with proven screw contacts.

Poles
Voltage
Clock position
  • screw terminals
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.195A
  • EAN4015394190486
  • Std. Pack. 10 Qty.

Technical specifications

Connector ProTOP 195A

Ampere 16 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 213 g
Declaration of Conformity DE,VDE
