MENNEKES worldwide

MENNEKES

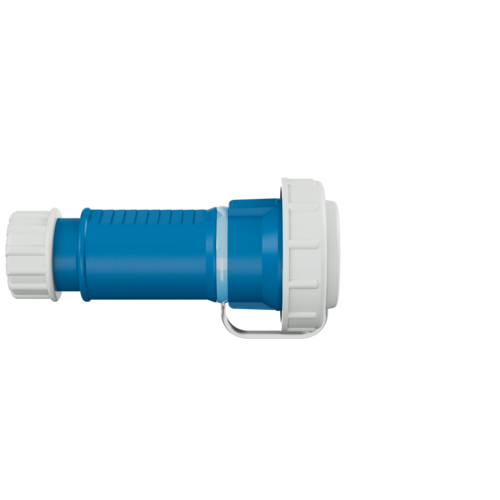

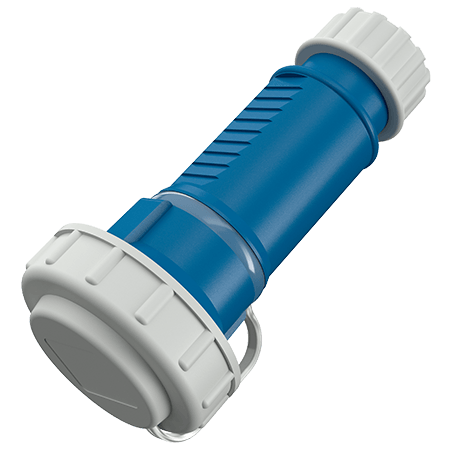

Connector SCHUKO® 10833

Ampere 16 A
Poles
Voltage
  • screw terminals
  • bayonet lock lid attached by a strap
  • for cables up to 3 x 2.5 mm², up to H07RN-F
  • Part no.10833
  • EAN4015394035541
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector SCHUKO® 10833

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 68
Shutter No
Weight 132 g
Declaration of Conformity VDE
EAC
