MENNEKES

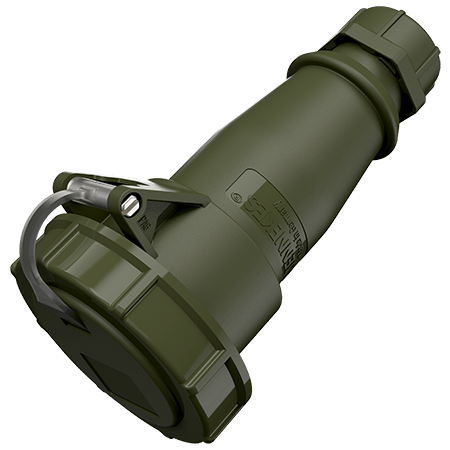

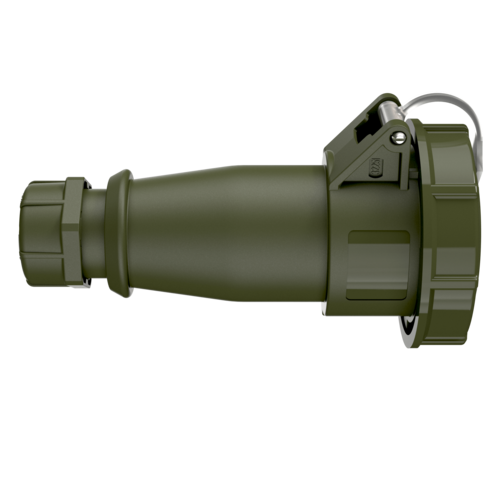

Connector TM 24686

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • (form DS)
  • Part no.24686
  • EAN4015394260776
  • Std. Pack. 10 Qty.

Technical specifications

Connector TM 24686

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP 67
Weight 284 g
