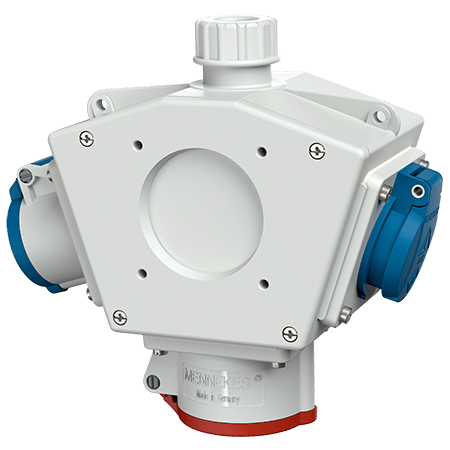

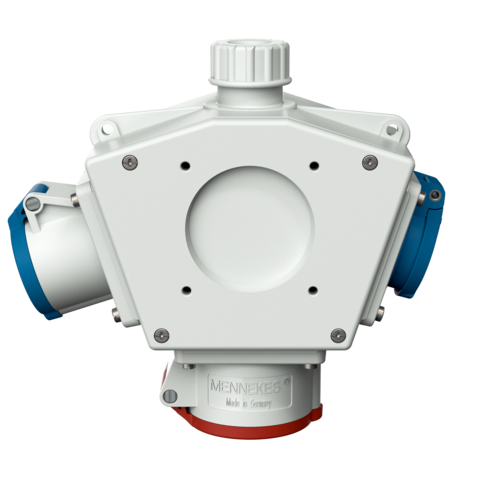

DELTA-BOX receptacle combination 92897

CEE 16 A, 5 p, 400 V
CEE 16 A, 3 p, 230 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • with cable grip and installed hanging hook
  • enclosure and insert made of AMAPLAST
  • Part no.92897
  • EAN4015394088479
  • Std. Pack. 5 Qty.

Technical specifications

DELTA-BOX receptacle combination 92897

CEE 16 A, 5 p, 400 V 1
CEE 16 A, 3 p, 230 V 1
SCHUKO® 16 A, 230 V 1
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP 44
Enclosure material Plastic
Weight 850 g
Declaration of Conformity EAC
Storage receptacle combination B

Appropriate accessories

DELTA-BOX receptacle combination 92897

Blanking flange

Part no. 41419

to close unused apertures, grey

more

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441

more

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile receptacle combinations

more
