MENNEKES

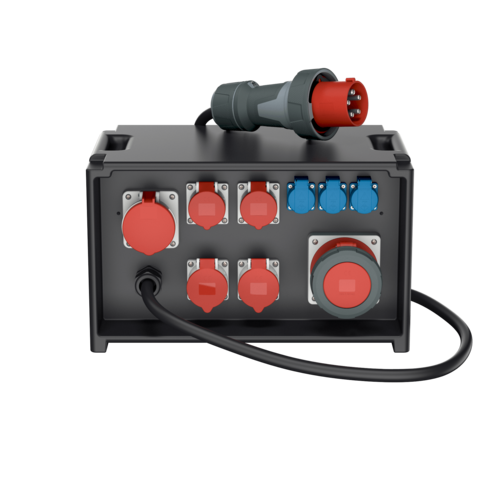

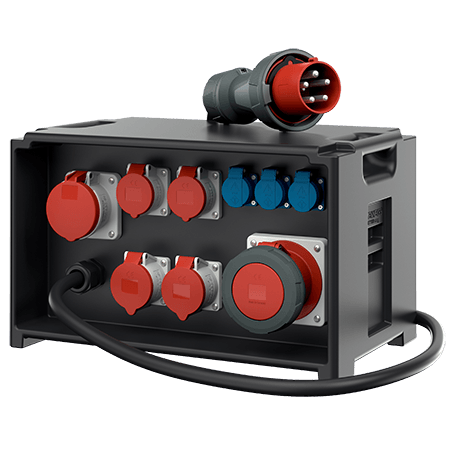

EverBOX 9500417

CEE 125 A, 5 p, 400 V
CEE 63 A, 5 p, 400 V
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • Robust, watertight insulating enclosure, black RAL 9005
  • pre-wired for installation
  • Fusing behind a transparent cover
  • Part no.9500417
  • EAN4015394283652
  • Std. Pack. 1 Qty.

Technical specifications

EverBOX 9500417

CEE 125 A, 5 p, 400 V 1
CEE 63 A, 5 p, 400 V 1
CEE 32 A, 5 p, 400 V 2
CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 3
Fusing
  • 2 RCD´s 63 A, 4 p, 0.03 A
  • 2 MCB´s 63 A, 3 p, C
  • 2 MCB´s 32 A, 3 p, C
  • 2 MCB´s 16 A, 3 p, C
  • 3 MCB´s 16 A, 1 p, C
Pre-fuse max. 125 A
InA 125 A
RDF 0.35
Connection/feeder cable
  • 2 m H07RN-F5G25 with CEE-plug 125 A, 5 p, 400 V
Protection type IP 44
Weight 28500 g
Length 560 mm
Height 340 mm
Width 350 mm
Storage receptacle combination D
