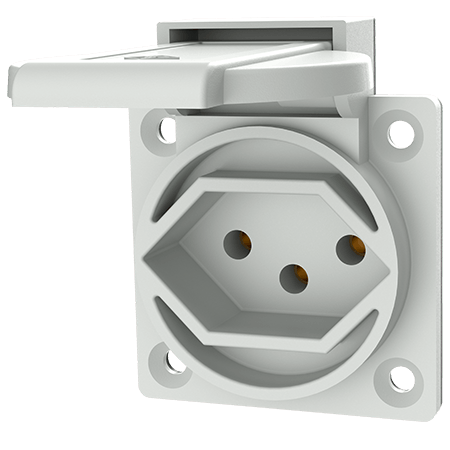

Grounding-type panel mounted receptacle 10085

Ampere 10 A
Poles
Voltage
  • Swiss standard
  • type 13
  • with hinged lid
  • 3 screw terminals
  • receptacle cannot be combined with enclosure base part no. 10714, 10715 or 10716
  • Part no.10085
  • EAN4015394162193
  • Std. Pack. 20 Qty.

Technical specifications

Grounding-type panel mounted receptacle 10085

Ampere 10 A
Poles 3 p
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 41 g
