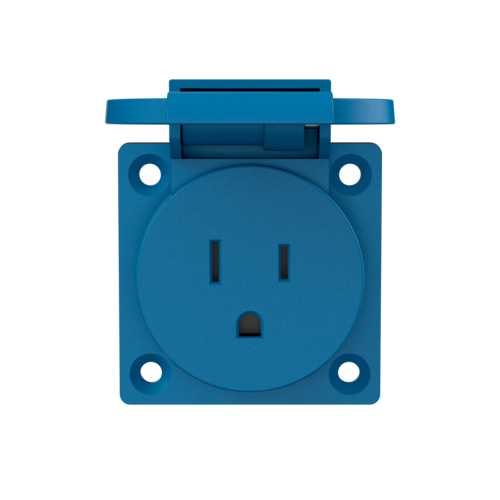

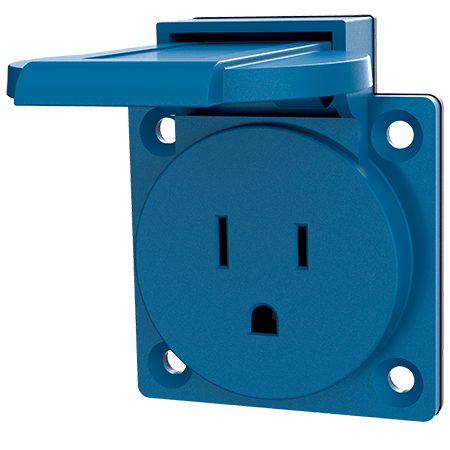

MENNEKES Grounding type panel mounted receptacle 10087
MENNEKES Grounding type panel mounted receptacle 10087 images3d

Grounding type panel mounted receptacle 10087

Ampere 15 A
Poles
Voltage
  • NEMA for the USA and Canada
  • with hinged lid
  • with 3 srew terminals
  • receptacle cannot be combined with enclosure base part no. 10714, 10715 or 10716
  • Part no.10087
  • EAN4015394162773
  • Std. Pack. 20
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding type panel mounted receptacle 10087

Ampere 15 A
Poles 2 p+E
Voltage 125 V
Connection technology Screw terminals
Contact standard
Protection type IP44
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 45 g
Certifications EAC

Directives

Grounding type panel mounted receptacle 10087
