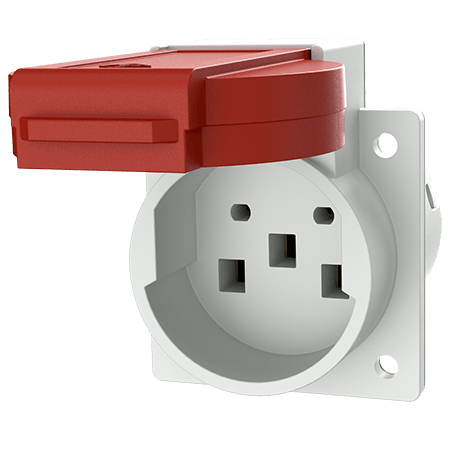

Grounding-type panel mounted receptacle 10712

Ampere 16 A
Poles
Voltage
  • Swiss standard
  • type 25
  • with hinged lid
  • 5 screw terminals
  • receptacle cannot be combined with enclosure base part no. 10714, 10715 or 10716
  • Part no.10712
  • EAN4015394188834
  • Std. Pack. 100 Qty.

Technical specifications

Grounding-type panel mounted receptacle 10712

Ampere 16 A
Poles 5 p
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 54
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 42 g
Declaration of Conformity EAC (Zwangszulassung)
