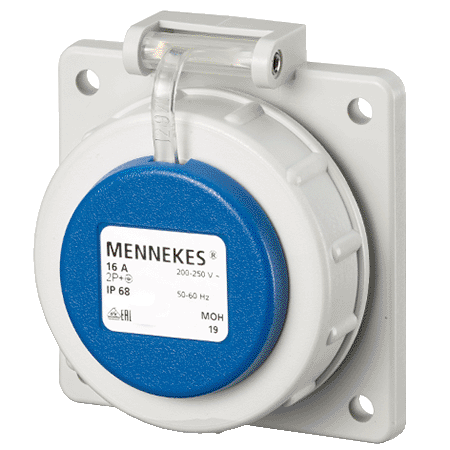

MENNEKES Grounding-type panel mounted receptacle 17081
MENNEKES Grounding-type panel mounted receptacle 17081 images3d

Grounding-type panel mounted receptacle 17081

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • screw terminals
  • bayonet lock lid attached by a strap
  • rectangular flange
  • four fixing holes
  • Part no.17081
  • EAN4015394280446
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type panel mounted receptacle 17081

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter Yes
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 106 g

Directives

Grounding-type panel mounted receptacle 17081
