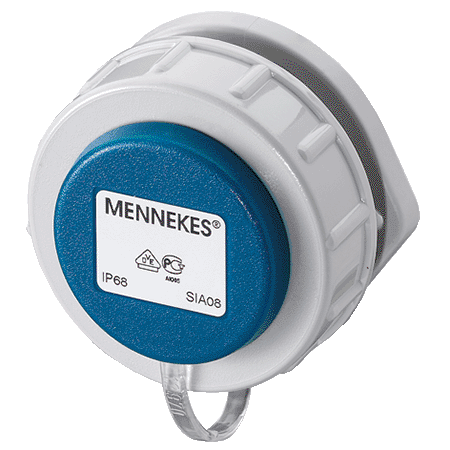

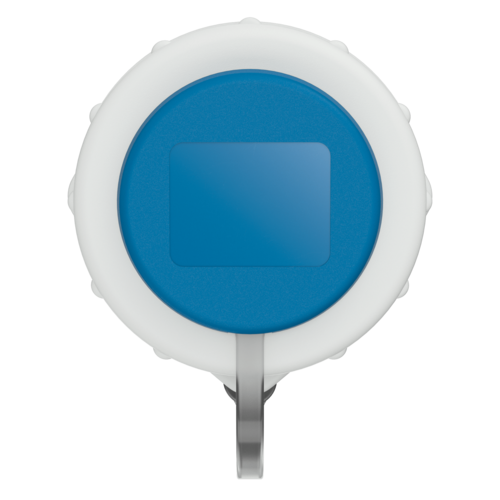

Grounding-type panel mounted receptacle 17097

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • screw terminals
  • bayonet lock lid attached by a strap
  • oval flange
  • two fixing holes
  • Part no.17097
  • Std. Pack. 10 Qty.

Technical specifications

Grounding-type panel mounted receptacle 17097

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 68
Shutter Yes
Weight 93 g

Datasheets & Downloads

Grounding-type panel mounted receptacle 17097
