MENNEKES

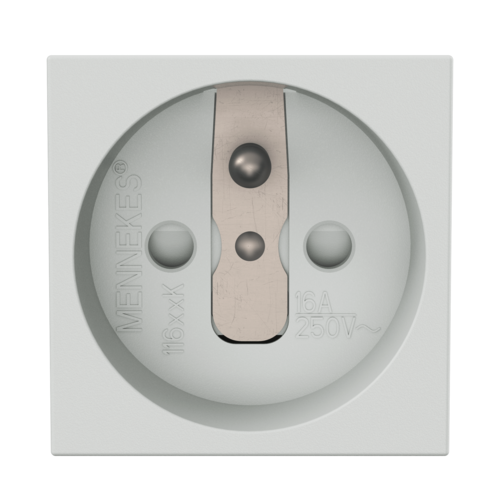

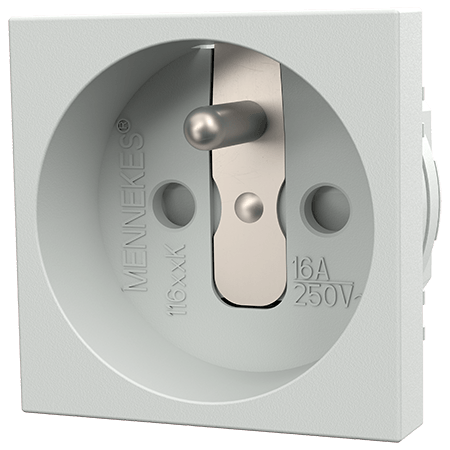

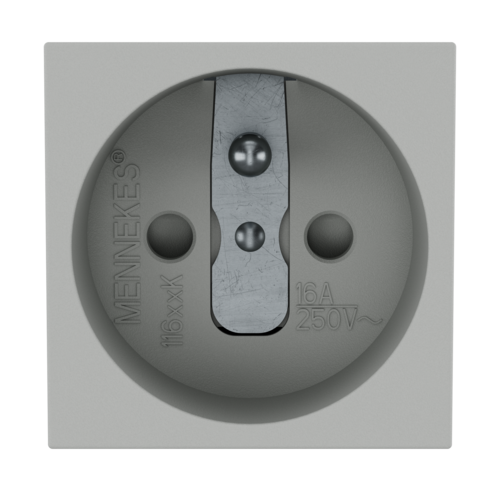

MENNEKES Grounding-type snap-in receptacle 11665K
MENNEKES Grounding-type snap-in receptacle 11665K images3d

Grounding-type snap-in receptacle 11665K

Ampere 16 A
Poles
Voltage
  • French-belgien standard
  • without hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • for easy installation in a cable duct or an enclosure
  • for fixing on DIN rails with fixing rack 11254
  • Part no.11665K
  • EAN4015394201953
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type snap-in receptacle 11665K

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP20
Shutter Yes
Flange 45x45 mm
Weight 32 g
Certifications EAC

Directives

Grounding-type snap-in receptacle 11665K

Appropriate accessories

Grounding-type snap-in receptacle 11665K

MENNEKES Fixing rack 11254

Fixing rack

Part no. 11254

for fixing of snap-in receptacles on DIN rails
