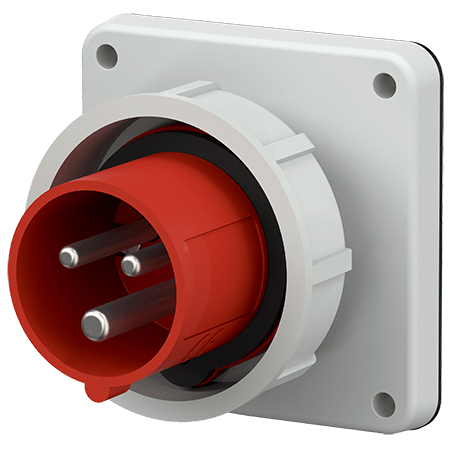

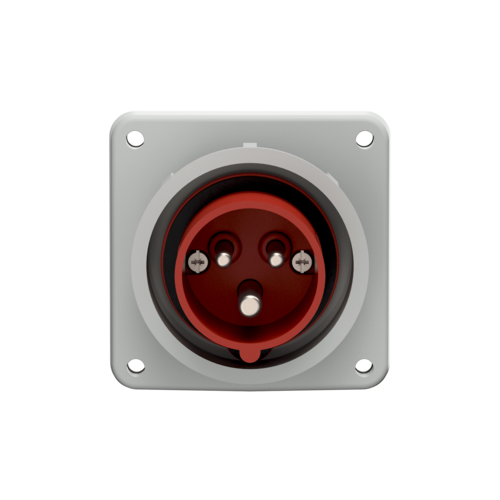

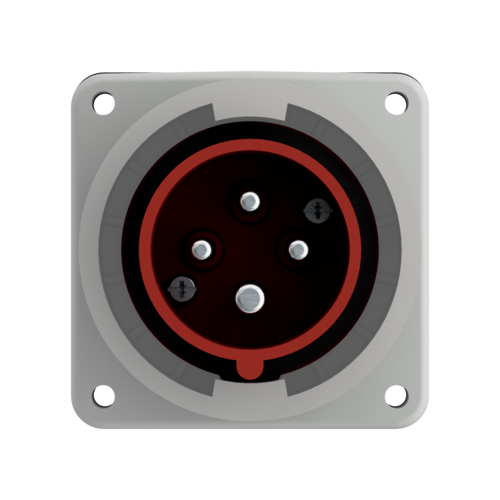

Panel mounted inlet 827

Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.827
  • EAN4015394116844
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted inlet 827

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP 67
Weight 174 g
Declaration of Conformity CN,CQC
DE,VDE (ÜG)

Appropriate accessories

Panel mounted inlet 827

Protective cover

Part no. 40778

for watertight plugs, wall mounted and panel mounted inlets

more

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

more
