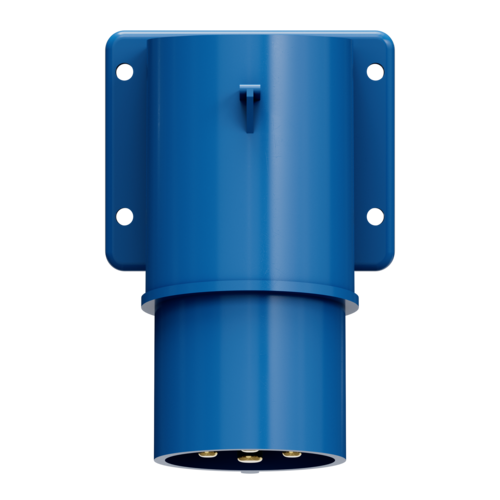

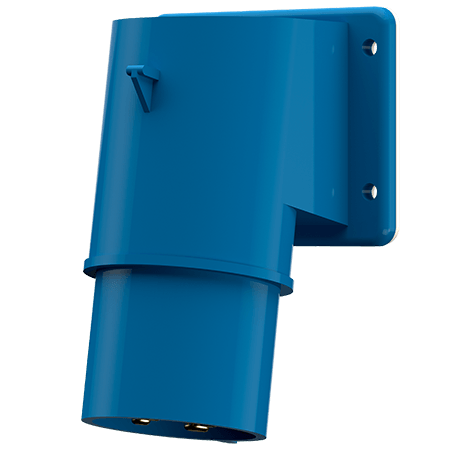

Panel mounted phase inverter inlet 3367

Poles
Voltage
Clock position
  • screw terminals
  • Part no.3367
  • EAN4015394196372
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted phase inverter inlet 3367

Ampere 32 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 248 g
Declaration of Conformity DE,VDE

Appropriate accessories

Panel mounted phase inverter inlet 3367

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more
