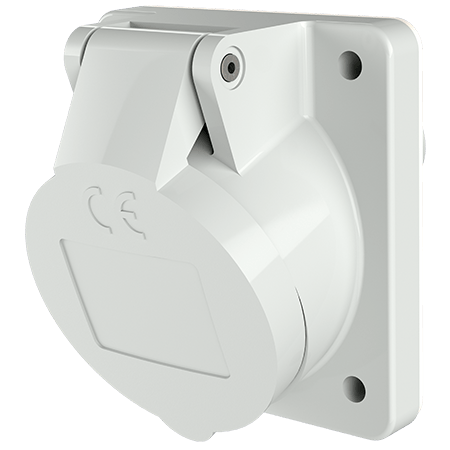

Panel mounted receptacle 1272

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1272
  • EAN4015394009085
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 1272

Ampere 16 A
Poles 3 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 68x62 mm
Fixing hole 53x47 mm
Inclination 20 °
Weight 143 g
Declaration of Conformity CN,CQC
