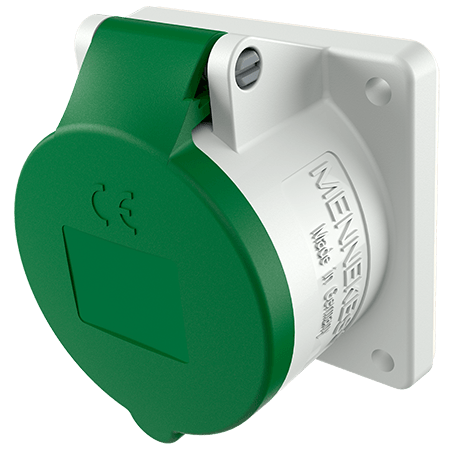

MENNEKES Panel mounted receptacle 1392

Panel mounted receptacle 1392

Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.1392
  • EAN4015394010241
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 1392

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 161 g
Certifications VDE

Directives

Panel mounted receptacle 1392

Appropriate accessories

Panel mounted receptacle 1392

MENNEKES Flange 40102

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
