MENNEKES Panel mounted receptacle 1459
MENNEKES Panel mounted receptacle 1459 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 1459

Poles
Voltage
Clock position
  • 125 A: 130 x 130 mm
  • straight
  • Part no.1459
  • EAN4015394011125
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

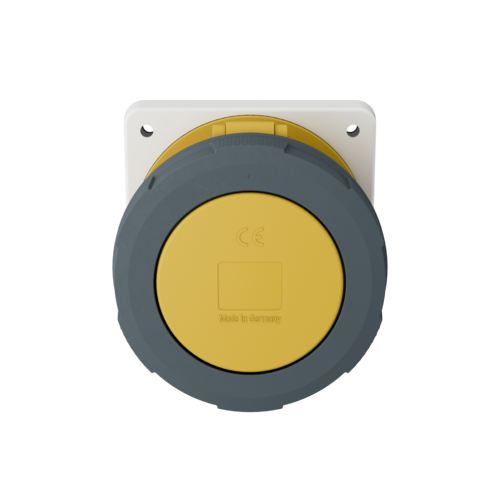

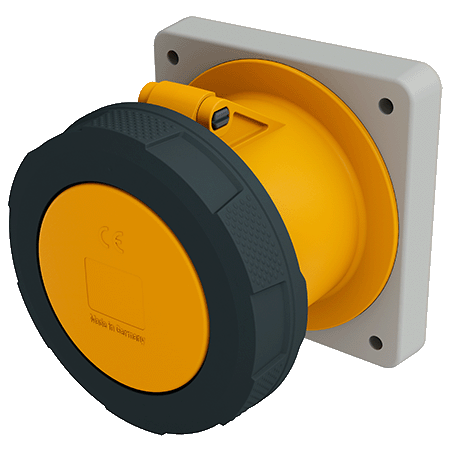

Panel mounted receptacle 1459

Ampere 125 A
Poles 5 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Flange 130x130 mm
Fixing hole 104x104 mm
Weight 1256 g
Declaration of Conformity VDE
EAC
CQC
