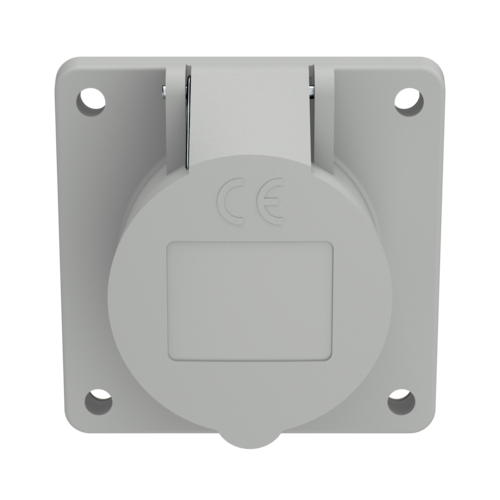

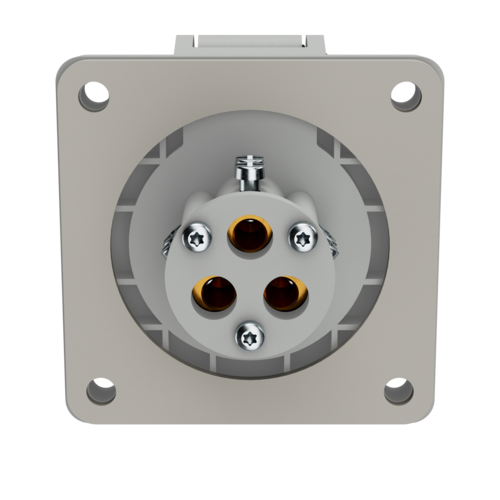

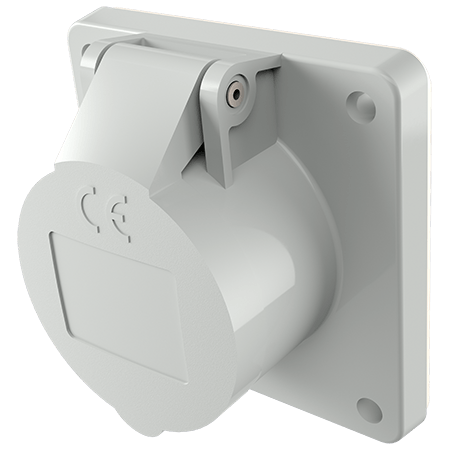

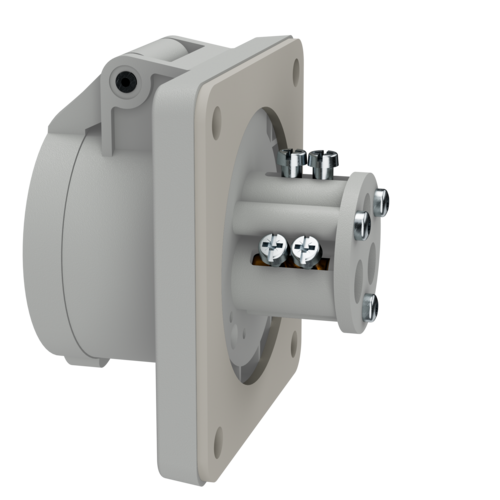

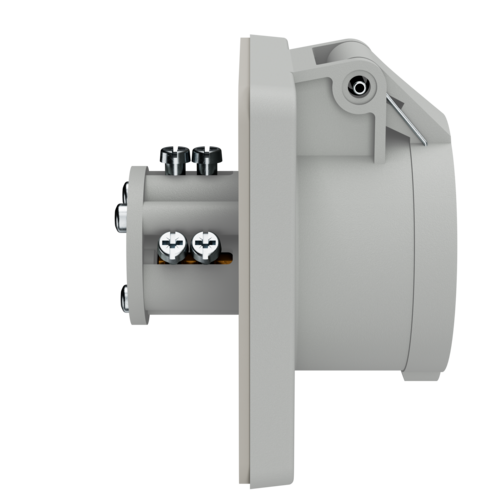

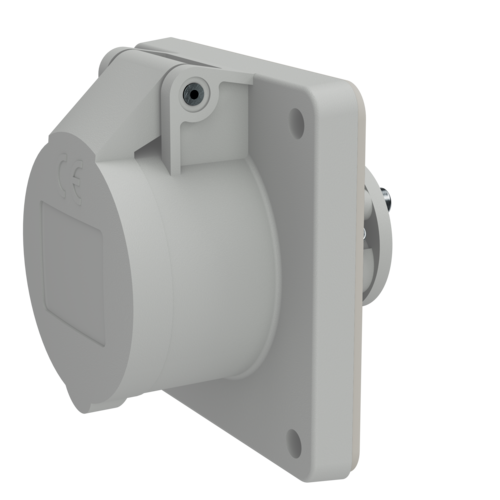

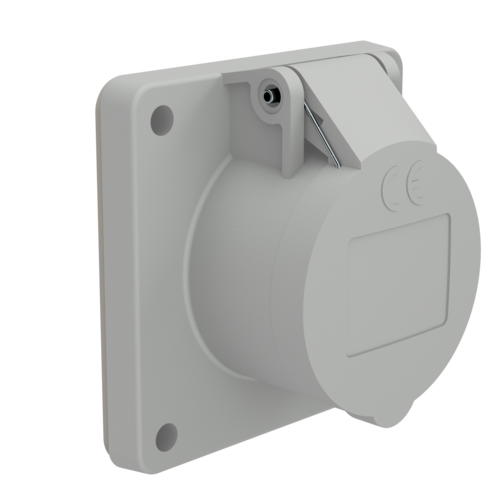

Panel mounted receptacle 1595

Poles
Voltage
Clock position
  • screw terminals
  • straight
  • also suitable for cable ducts and flush mounted installation boxes
  • Part no.1595
  • EAN4015394178866
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 1595

Ampere 32 A
Poles 3 p
Voltage 40-50 V
Clock position 12 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 452 g
Declaration of Conformity CN,CQC

Appropriate accessories

Panel mounted receptacle 1595

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

more

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

more
