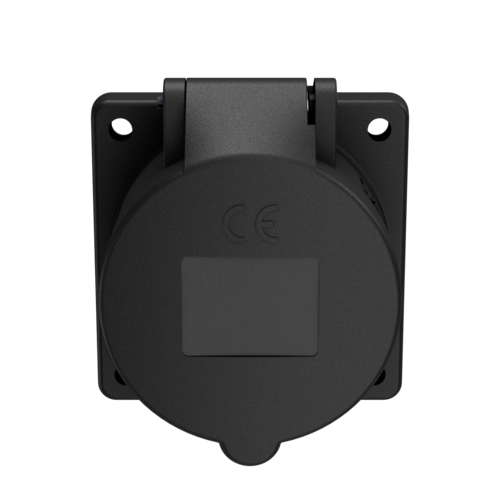

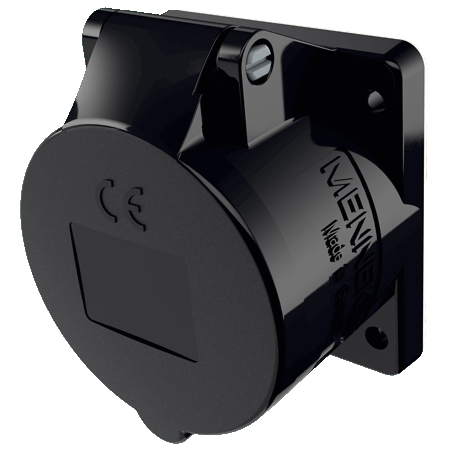

MENNEKES Panel mounted receptacle 22071ZA
MENNEKES Panel mounted receptacle 22071ZA images3d

Panel mounted receptacle 22071ZA

Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.22071ZA
  • EAN4015394210214
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 22071ZA

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 233 g
Certifications EAC

Directives

Panel mounted receptacle 22071ZA

Appropriate accessories

Panel mounted receptacle 22071ZA

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

MENNEKES Flange 40102

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
