MENNEKES Panel mounted receptacle 2711
MENNEKES Panel mounted receptacle 2711 images3d

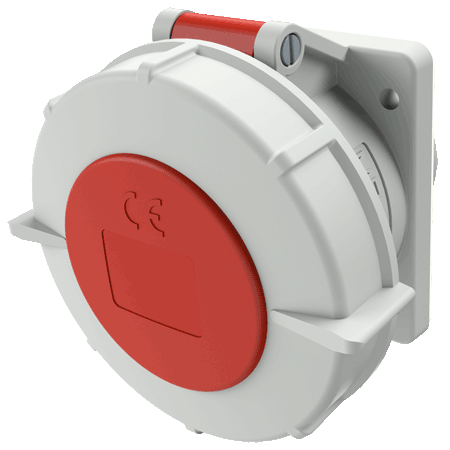

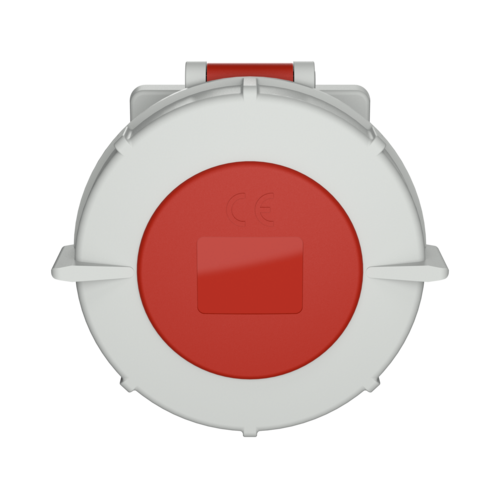

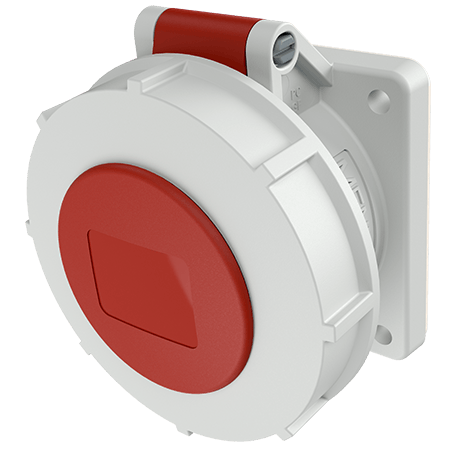

Panel mounted receptacle 2711

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • Part no.2711
  • EAN4015394016229
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 2711

Ampere 16 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 217 g
Certifications EAC

Directives

Panel mounted receptacle 2711

Appropriate accessories

Panel mounted receptacle 2711

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136
