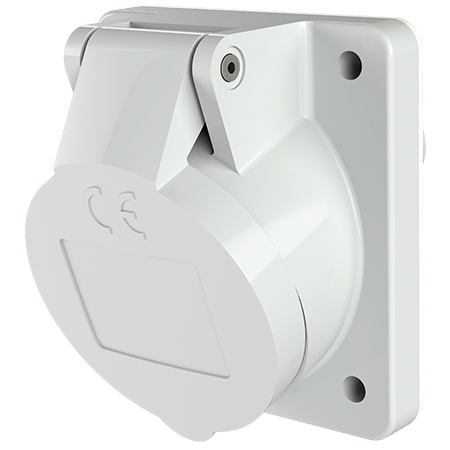

Panel mounted receptacle 2841

Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.2841
  • EAN4015394016700
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 2841

Ampere 16 A
Poles 2 p
Voltage 50 V
Clock position 10 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 68x62 mm
Fixing hole 53x47 mm
Inclination 20 °
Weight 125 g
Declaration of Conformity CN,CQC
