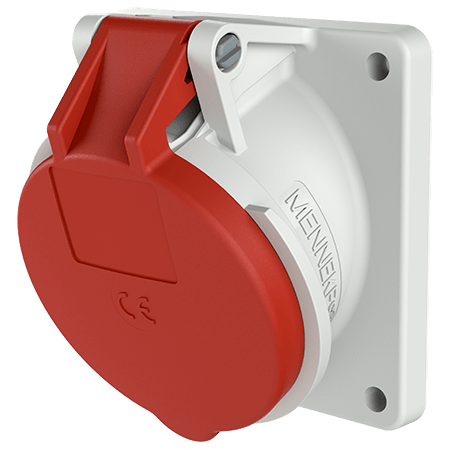

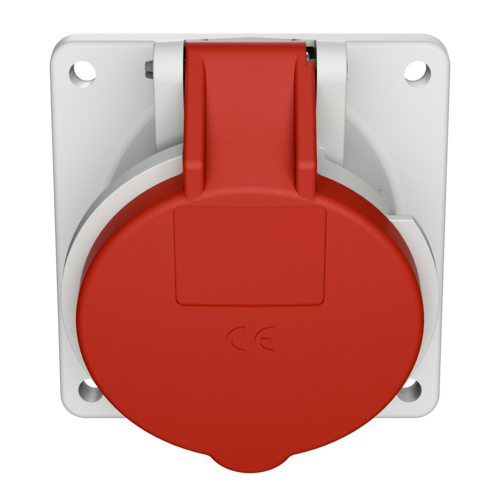

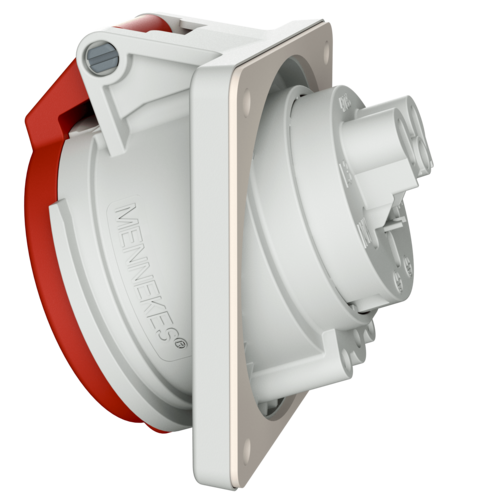

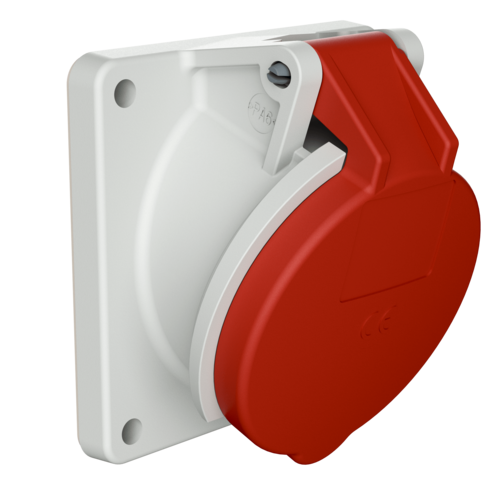

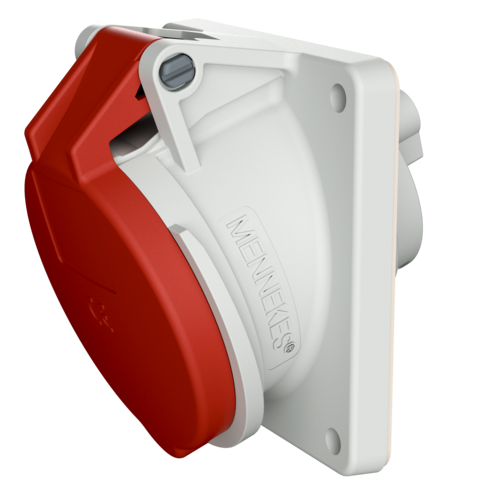

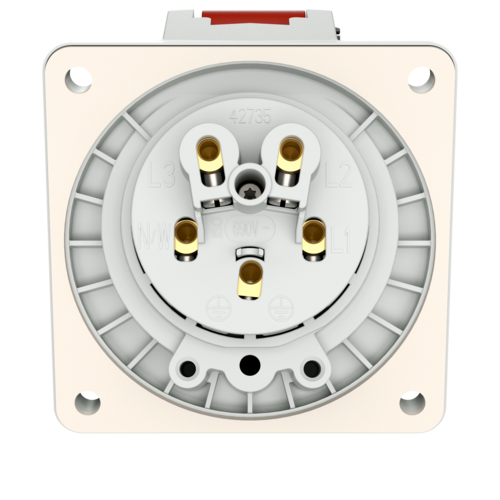

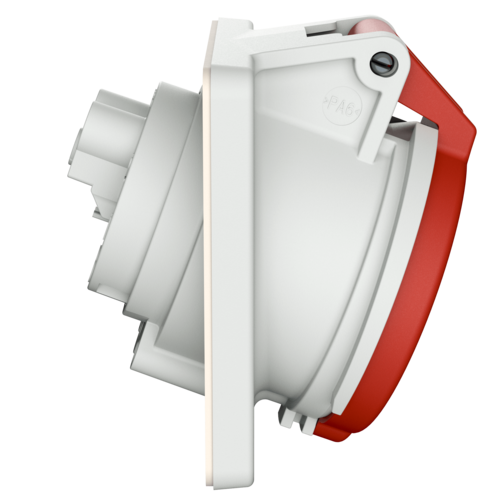

MENNEKES Panel mounted receptacle 3153
MENNEKES Panel mounted receptacle 3153 images3d

Panel mounted receptacle 3153

Poles
Voltage
Clock position
  • screw terminals
  • uniform flange dimensions
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3153
  • EAN4015394202707
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3153

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 276 g
Certifications VDE
EAC
CQC

Directives

Panel mounted receptacle 3153

Appropriate accessories

Panel mounted receptacle 3153

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
