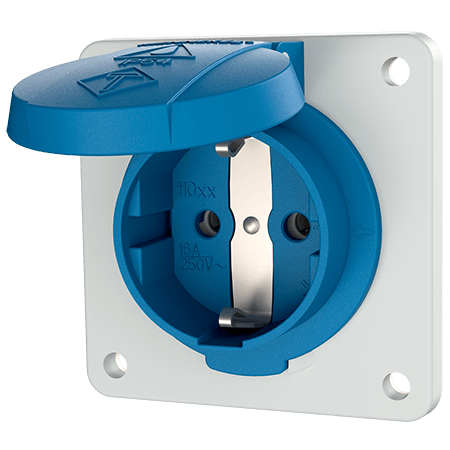

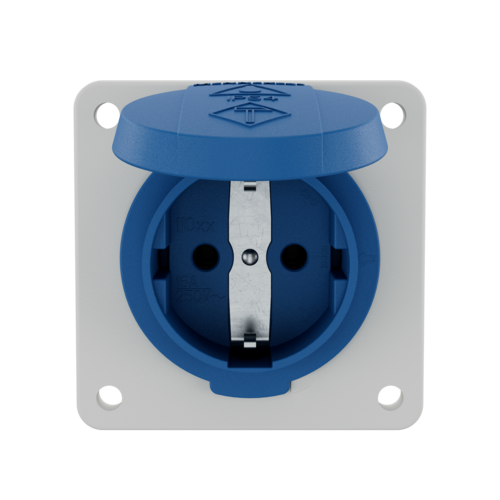

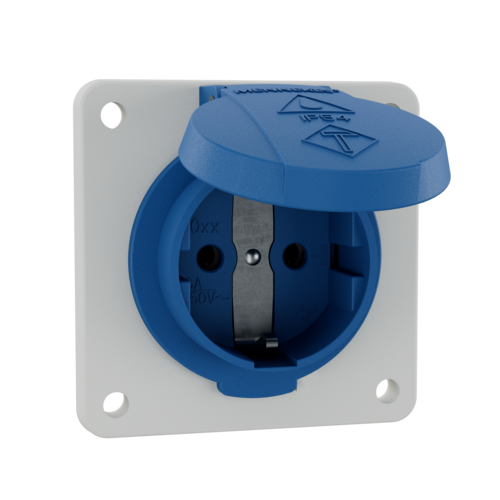

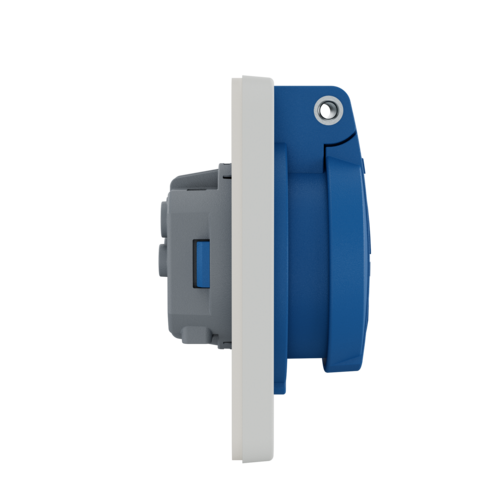

Panel mounted receptacle SCHUKO® 11011F

Ampere 16 A
Poles
Voltage
  • for stationary use

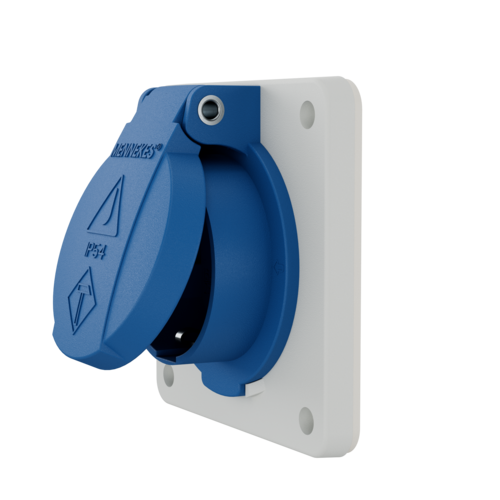

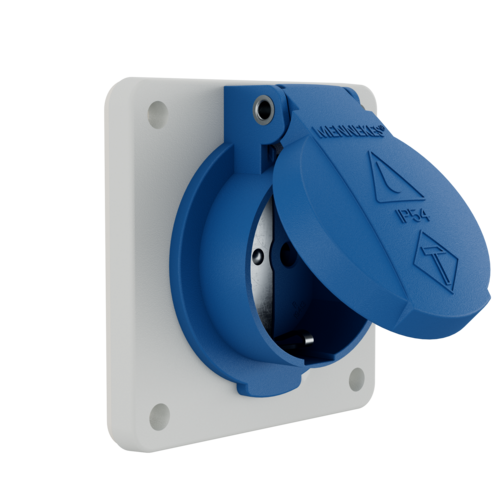

  • with hinged lid
  • also suitable for cable ducts and flush mounted installation boxes

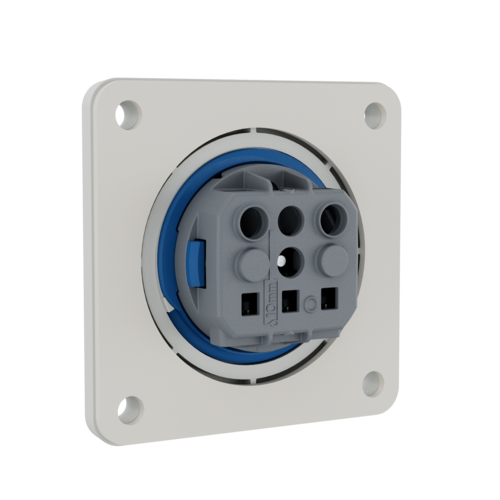

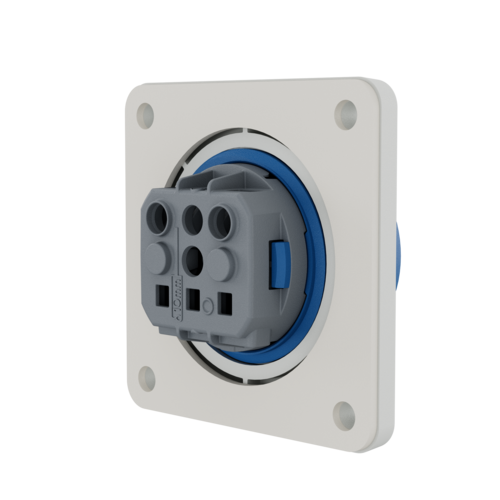

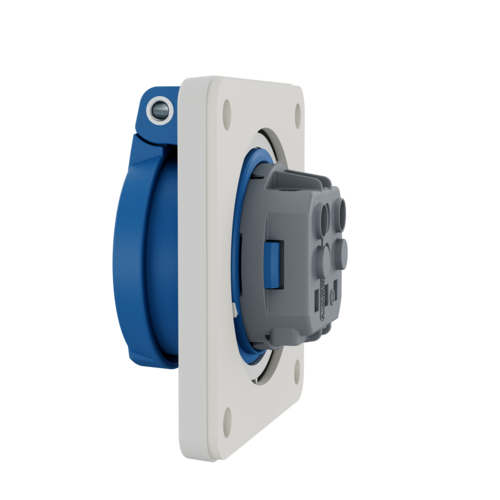

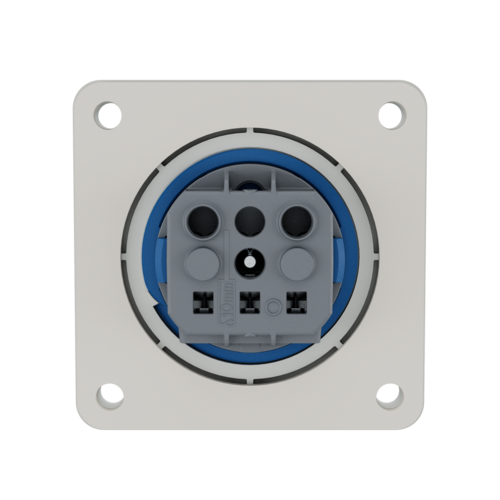

  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11011F
  • EAN4015394259220
  • Std. Pack. 20 Qty.

Technical specifications

Panel mounted receptacle SCHUKO® 11011F

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP 54
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 65 g
Declaration of Conformity VDE
EAC

Appropriate accessories

Panel mounted receptacle SCHUKO® 11011F

Blanking flange

Part no. 41419

to close unused apertures, grey

more

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted receptacles

more
