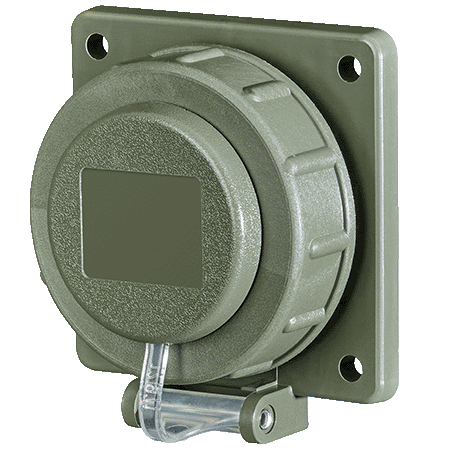

MENNEKES Panel mounted receptacle SCHUKO® TM 17021

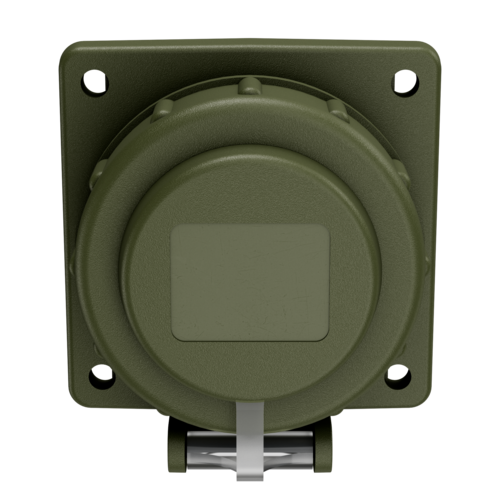

MENNEKES Panel mounted receptacle SCHUKO® TM 17021 images3d

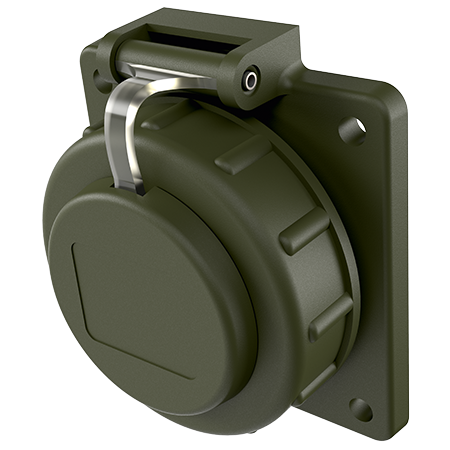

Panel mounted receptacle SCHUKO® TM 17021

Ampere 16 A
Poles
Voltage
  • screw terminals
  • bayonet lock lid attached by a strap
  • rectangular flange
  • (form AS)
  • connecting protective caps, part no. 19027706, available on request
  • Part no.17021
  • EAN4015394288602
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle SCHUKO® TM 17021

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No

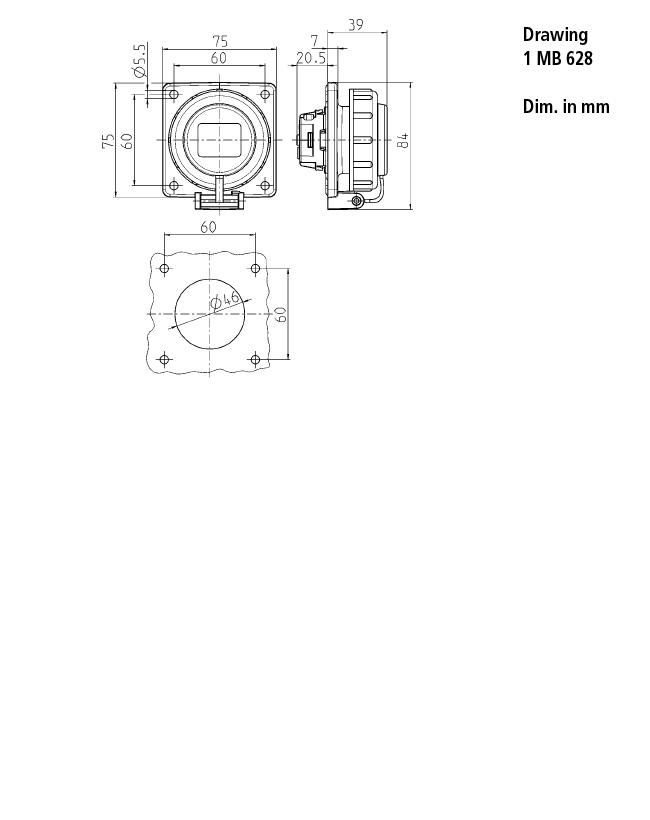

Flange 75x75 mm
Fixing hole 60x60 mm
Weight 110 g
Certifications VDE
EAC

Directives

Panel mounted receptacle SCHUKO® TM 17021

Frequently asked questions about the product

Why are no seals supplied with panel-mounted SCHUKO® receptacles?

Our panel-mounted SCHUKO® receptacles have a moulded sealing lip and require no separate seal to guarantee that protection class IP44 requirements are met.

To the questions and answers
