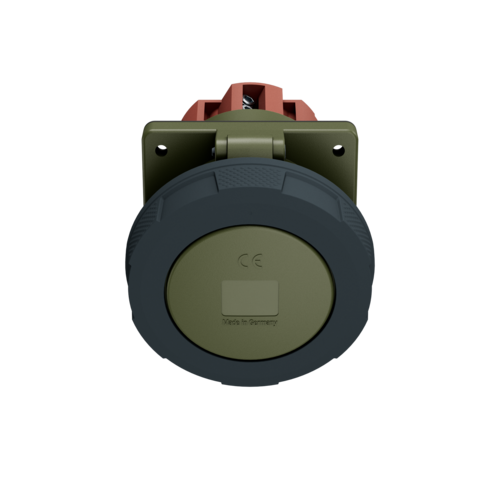

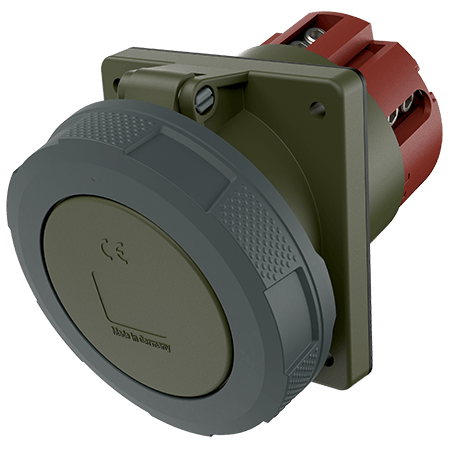

MENNEKES Panel mounted receptacle TM 22189A
MENNEKES Panel mounted receptacle TM 22189A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle TM 22189A

Ampere 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • 15° inclination
  • (form BS)
  • Part no.22189A
  • EAN4015394041818
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Panel mounted receptacle TM 22189A

Ampere 125 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
X-CONTACT
Protection type IP67
Flange 114x110 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 1232 g
Certifications VDE
