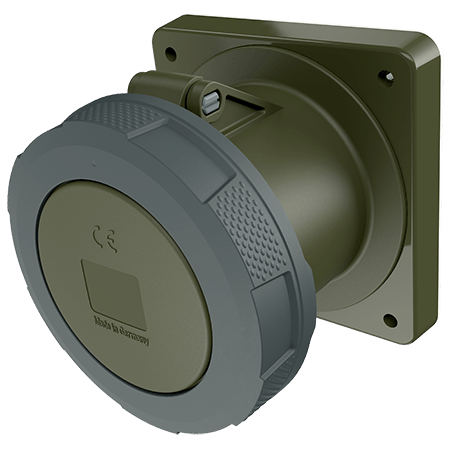

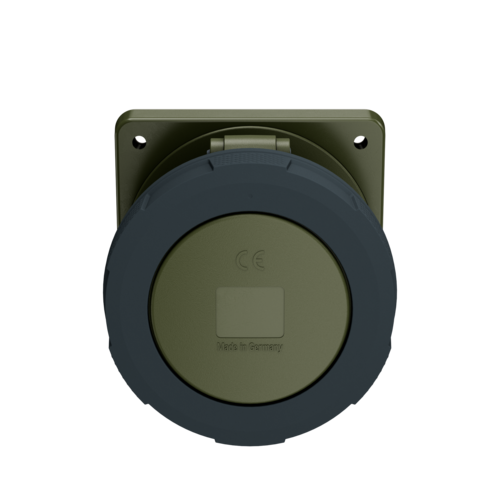

Panel mounted receptacle TM 23432

Ampere 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • straight
  • (form AS)
  • Part no.23432
  • EAN4015394044215
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle TM 23432

Ampere 125 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
X-CONTACT®
highly heat resistant contact carrier
Protection type IP 67
Flange 130x130 mm
Fixing hole 104x104 mm
Weight 1371 g
Declaration of Conformity EAC
