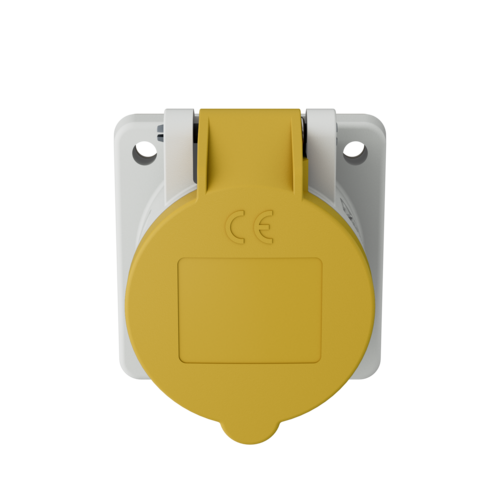

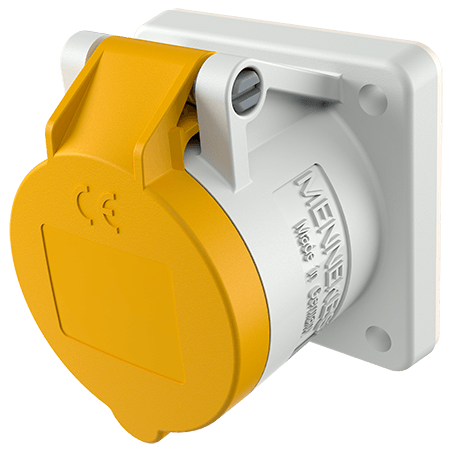

Panel mounted receptacle with TwinCONTACT 1337

Ampere 16 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • straight
  • Part no.1337
  • EAN4015394221838
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1337

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 62x62 mm
Fixing hole 47x47 mm
Weight 210 g

Mounting instruction video

Video mounting instructions
