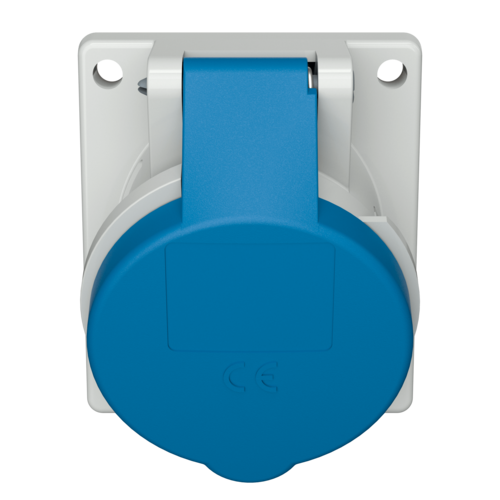

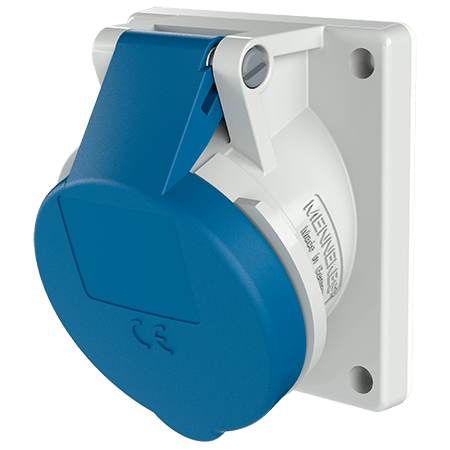

Panel mounted receptacle with TwinCONTACT 1632

MENNEKES panel mounted receptacle for 16 A with TwinCONTACT. Especially suitable for the camping sector.

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • 32 A receptacles are designed for adding an auxiliary contact switch
  • Part no.1632
  • EAN4015394210146
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1632

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 100 g
Declaration of Conformity CN,CQC

Mounting instruction video

Video mounting instructions
