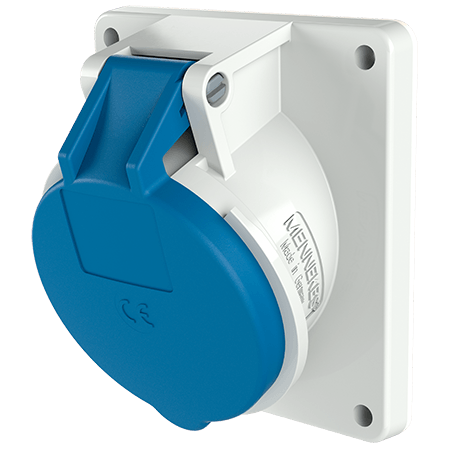

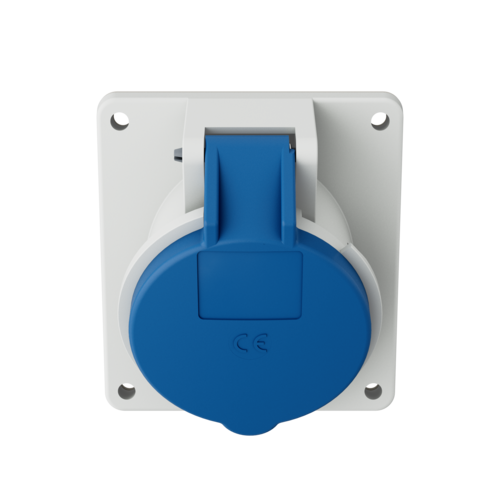

Panel mounted receptacle with TwinCONTACT 1643

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • 32 A receptacles are designed for adding an auxiliary contact switch
  • Part no.1643
  • EAN4015394214441
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1643

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 164 g
