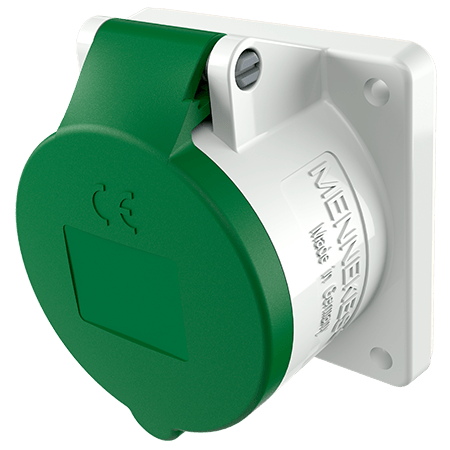

Panel mounted receptacle with TwinCONTACT 1676

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • straight
  • blanking flange to close unused apertures part no. 41419
  • Part no.1676
  • EAN4015394214533
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle with TwinCONTACT 1676

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 140 g
Declaration of Conformity VDE
EAC
CQC

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1676

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

Blanking flange

Part no. 41419

to close unused apertures, grey
