MENNEKES Panel mounted receptacle with TwinCONTACT 1711
MENNEKES Panel mounted receptacle with TwinCONTACT 1711 images3d

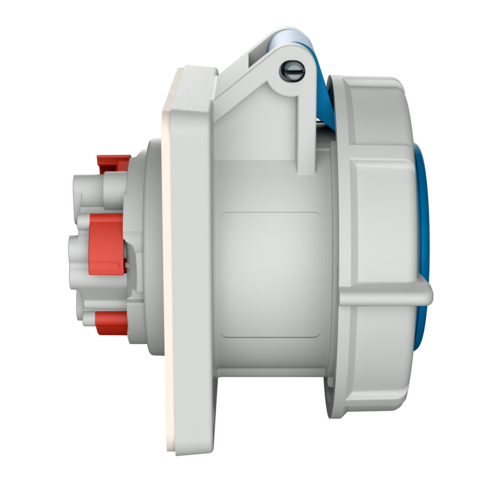

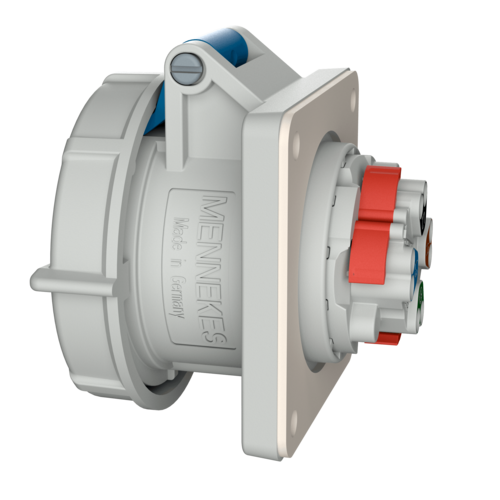

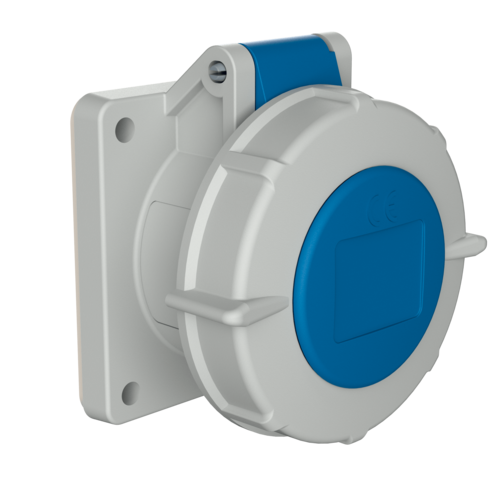

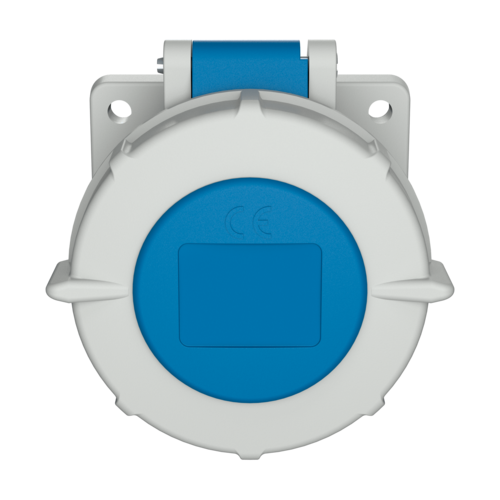

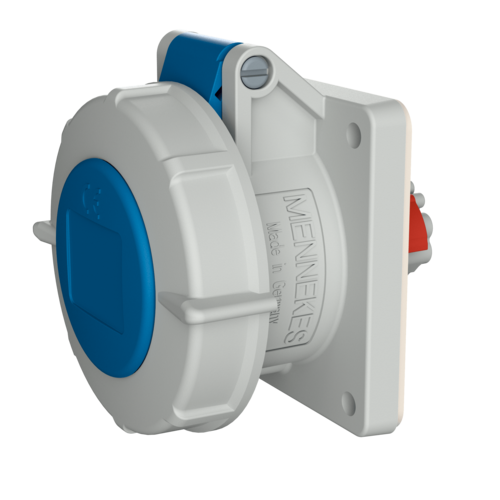

Panel mounted receptacle with TwinCONTACT 1711

Poles
Voltage
Clock position

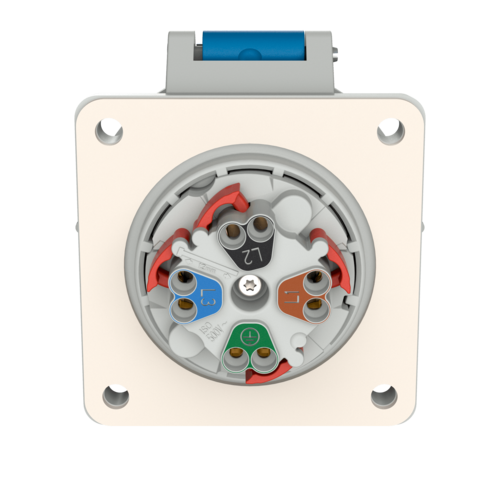

  • screwless spring terminals
  • suitable for through wiring
  • straight
  • blanking flange to close unused apertures part no. 41419
  • Part no.1711
  • EAN4015394214670
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted receptacle with TwinCONTACT 1711

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 150 g
Certifications EAC

Directives

Panel mounted receptacle with TwinCONTACT 1711

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1711

MENNEKES Flange 40102

Flange

Part no. 40102

for panel mounted receptacles: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

MENNEKES Flush mounted installation box 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136

MENNEKES Flange 41340

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey
