MENNEKES

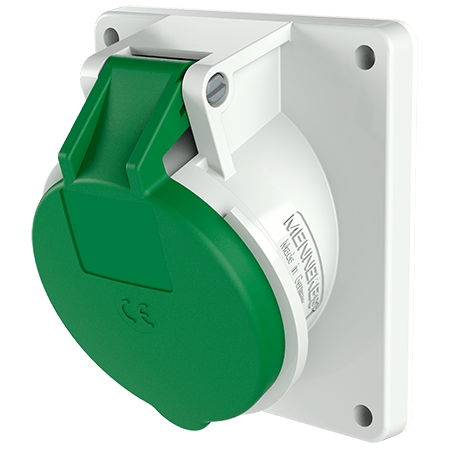

Panel mounted receptacle with TwinCONTACT 1742

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • 32 A receptacles are designed for adding an auxiliary contact switch
  • Part no.1742
  • EAN4015394214847
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle with TwinCONTACT 1742

Ampere 32 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP 44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 238 g

Mounting instruction video

Video mounting instructions

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 1742

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
