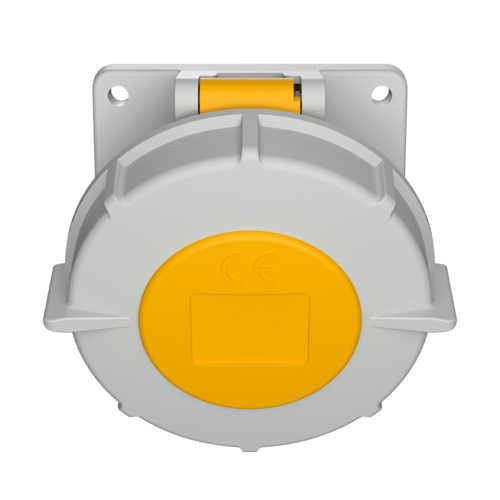

MENNEKES Panel mounted receptacle with TwinCONTACT 3566
MENNEKES Panel mounted receptacle with TwinCONTACT 3566 images3d

Panel mounted receptacle with TwinCONTACT 3566

Poles
Voltage
Clock position
  • screwless spring terminals
  • standard flange dimensions
  • suitable for through wiring
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.3566
  • EAN4015394221524
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle with TwinCONTACT 3566

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 246 g
Declaration of Conformity EAC
CQC

Appropriate accessories

Panel mounted receptacle with TwinCONTACT 3566

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
